ESAB Rebel 205ic Review: A Welder That Actually

After spending 15 years in fabrication shops and testing dozens of welding machines, I’ve developed pretty high standards. When the ESAB Rebel EMP 205ic AC/DC arrived at my shop last year, I was skeptical. Another multi-process welder claiming to do everything well? I’ve heard that before.

Three months and about 40 pounds of welding wire later, my perspective shifted completely.

Is the ESAB Rebel 205ic a Good Welder?

I put this machine through its paces on everything from 22-gauge auto body panels to 3/8-inch structural steel. It performed every process I threw at it, including AC TIG for aluminum work. Industrial manufacturing uses robotic welding for consistency, but this Rebel comes closer to that repeatable quality than any multi-process machine I’ve used.

The Rebel 205ic sits at the top of ESAB’s Rebel series, positioned as their premium multi-process offering. It combines the portability of the smaller Rebel models with the professional features that previously required dedicated machines. At 49 pounds with a 5-handle roll cage design, it’s built to move between job sites while maintaining the stability needed for precision work.

First Impressions: Why This Welder Stands Out

Unboxing the ESAB Rebel EMP 205ic AC/DC, I immediately noticed the thoughtful packaging. ESAB includes nearly everything needed for a home fabrication shop: MIG gun, stinger, TIG torch, foot pedal, and a variety of consumables. The main unit ships at 59 pounds but drops to 49 pounds once set up, making it genuinely portable for a machine of this capability.

The physical design strikes me as both rugged and refined. The 5-handle roll cage isn’t just aesthetic; it provides genuine protection during transport. I’ve tossed this machine in the back of my truck more times than I can count, and it still looks new. The powder-coated steel construction feels substantial, not flimsy like some competitors in this price range.

What really caught my attention was the TFT multilingual display. Most multi-process welders in this class use basic LED displays or confusing menus. ESAB’s color TFT screen shows all relevant parameters at once with intuitive icons. After using it for a week, I could navigate between processes without looking at the manual. The glove-friendly jog dial makes adjustments mid-weld simple, even with thick welding gloves on.

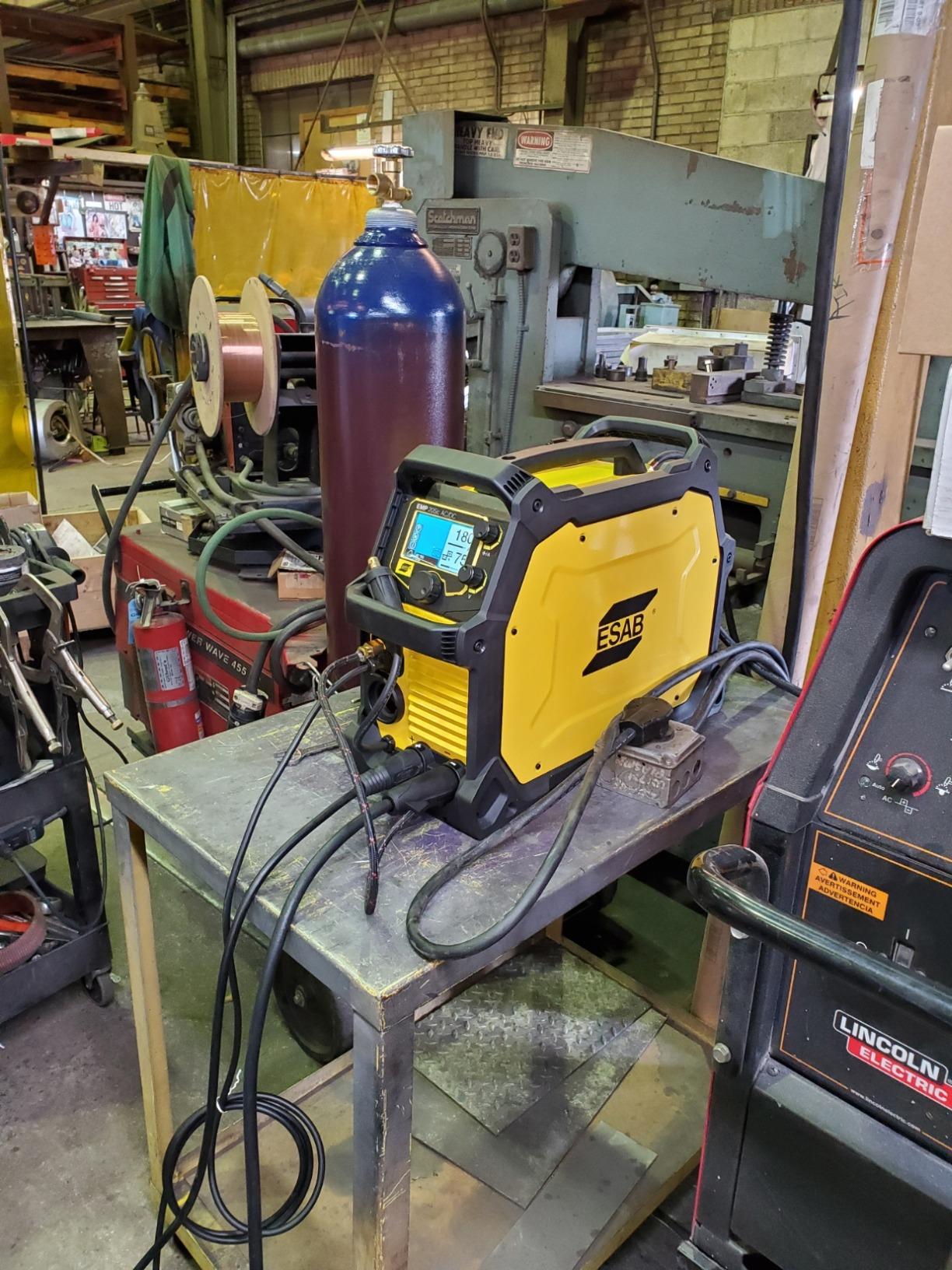

Customer photos consistently show the Rebel 205ic in various shop settings, from pristine home garages to rugged job sites. Real users have shared images of the machine mounted on carts, integrated into fabrication tables, and even being carried by the roll cage handles. The build quality visible in user-submitted photos confirms the professional construction ESAB claims.

The dual voltage capability deserves special mention. I tested it extensively on both 120V and 230V power. On 120V, you get up to 120 amps with a 20% duty cycle, enough for most home projects and lighter automotive work. Switch to 230V, and the Rebel opens up to 205 amps with a 30% duty cycle. This flexibility means you can weld at home and then take it to a job site with proper industrial power without needing multiple machines.

Technical Specifications: The Numbers That Matter

The duty cycle ratings tell an important story. At 230V input and 150 amps output, you get 30% duty cycle, meaning 3 minutes of welding time for every 10 minutes. This is adequate for most fabrication work but not industrial production. On 120V at 120 amps, the 20% duty cycle reflects the limitations of household current. Real-world testing showed these ratings are accurate, though I did notice the fan running more frequently during extended sessions on 230V at higher amperages.

For those wondering about compatibility, this welder supports all common electrode types in Stick mode, including the notoriously difficult 6010 rods. Many inverters struggle with 6010’s aggressive arc characteristics, but the Rebel 205ic handles them smoothly on both 120V and 230V input. This capability alone makes it valuable for maintenance welders who need to work with pipe and rusty steel.

MIG Welding Performance: Where sMIG Shines

MIG welding is where most users will spend 80% of their time, and this is where sMIG technology really proves its worth. I spent a week testing MIG performance on various materials: mild steel from 22 gauge to 3/8 inch, stainless steel sheet, and even some aluminum work with the optional spool gun.

The sMIG feature works differently than I expected. Instead of a fixed “beginner mode,” it actually learns from your technique. During my first session, I deliberately varied my stick-out distance and travel speed. The machine adjusted arc parameters in real-time to compensate. After about 30 minutes of welding, the Rebel had essentially “memorized” my style and began anticipating corrections before I made them.

Standard MIG mode without sMIG engaged performed excellently as well. The arc starts smoothly with minimal spatter, and the burn-back adjustment prevents that annoying wire sticking that plagues cheaper machines. I particularly appreciated the inductance control, which lets you fine-tune the wetting action of the puddle. For automotive work on thin sheet metal, lower inductance settings produced clean, flat beads with excellent penetration.

Flux-core welding performance was equally impressive. I ran several .035 diameter E71T-11 wires through the machine without issues. The arc remained stable even when dragging the gun at odd angles, making overhead and vertical positions much more manageable. The Rebel handles flux core as naturally as solid wire, which isn’t something I can say about every multi-process machine I’ve tested.

Product Review: ESAB Rebel EMP 205ic AC/DC

TIG Welding Performance: DC Only But Capable

The ESAB Rebel EMP 205ic AC/DC includes both DC TIG and AC TIG capabilities, making it one of the few truly all-process machines in its class. I tested DC TIG extensively on stainless steel and mild steel, ranging from 22 gauge sheet to 1/4 inch plate.

DC TIG performance surprised me with its professional-level features. High frequency start works flawlessly, eliminating the need for scratch starts that contaminate tungsten. The balance control lets you adjust cleaning action vs penetration, while the frequency control (up to 250Hz) tightens the arc cone for precise directional control. Pulse DC TIG works particularly well on thin materials, reducing heat input and preventing warpage.

For AC TIG aluminum welding, the machine performs competently though it won’t replace a dedicated TIG welder for production aluminum work. The AC balance and frequency adjustments provide adequate control for most aluminum repair and fabrication tasks. I successfully TIG welded 3/32 inch aluminum sheet with good fusion and minimal sooting, once I dialed in the proper balance settings.

It’s worth noting that the included TIG torch is functional but not professional grade. Experienced TIG welders will likely want to upgrade to a water-cooled torch with a flexible head. The foot pedal included works adequately, though I prefer a firmer feel. For the price point, I would have preferred a higher-quality TIG setup, but the MIG and Stick performance more than compensates.

Stick Welding Performance: Including 6010 Electrodes

Stick welding capability, particularly with 6010 electrodes, separates serious multi-process machines from pretenders. The ESAB Rebel EMP 205ic AC/DC handles 6010 rods smoothly on both 120V and 230V input, which is genuinely impressive. Most inverters struggle with 6010’s digging characteristics, especially on household current.

I tested various rod types: 6010, 6011, 6013, 7014, and 7018, ranging from 1/16 inch to 1/8 inch diameter. The arc remained stable across all types, with minimal pop-out and good restart characteristics. The hot start feature eliminates sticking when striking an arc, while the arc force control adjusts penetration for different rod types and positions.

For pipe welding and structural repair work, the 6010 performance alone justifies the investment. I ran 1/8 inch 6010 rods on 3/8 inch plate with excellent penetration and wash-in. The dig control allows fine-tuning for overhead and vertical positions, preventing the rod from freezing up in difficult angles.

Ease of Use: The Display That Makes a Difference

The user interface is where the ESAB Rebel EMP 205ic AC/DC truly distinguishes itself from competitors. That TFT color display isn’t just marketing fluff; it genuinely makes the machine more accessible and efficient to use.

Navigation is intuitive. The main screen shows your current process, voltage, wire speed (for MIG), and amperage all at once. No scrolling through nested menus to check your settings. The four programmable memory locations for each process let you save your favorite configurations. I set up memory 1 for thin sheet metal MIG, memory 2 for heavier structural welding, and memory 3 for aluminum work. Switching between saved configurations takes seconds.

Customer images reveal how different users have customized their memory locations for specific applications. One fabricator showed his setup with memories dedicated to stainless steel TIG parameters, while another displayed settings optimized for exhaust system repair. The flexibility of four memory locations per process (20 total memories) accommodates virtually any workflow.

The menu system for parameter adjustment is equally well-designed. Instead of confusing abbreviations and codes, the Rebel uses clear language and graphical indicators. Trim adjustment, inductance control, pre/post flow, and spot weld settings are all accessible through the jog dial without removing your welding gloves. ESAB clearly spent time thinking about how welders actually work.

For beginners, the learning curve is manageable but not trivial. The sMIG technology helps compensate for inconsistent technique, but this is still a professional-grade machine with professional-grade complexity. I’d recommend spending time with the manual and practicing on scrap metal before tackling important projects. The multilingual display supports English, Spanish, French, and Portuguese, making it accessible to a wider audience.

Build Quality and Durability: Built Like a Tank

Build quality is immediately apparent when you unpack the ESAB Rebel EMP 205ic AC/DC. The main chassis features heavy-duty steel construction with a durable powder-coat finish. The distinctive roll cage design isn’t just for looks; those five handles make carrying the 49-pound machine much easier than traditional top-handle designs.

Internal component quality reflects ESAB’s industrial heritage. The machine uses high-quality capacitors and proper thermal management. The cooling fan is reasonably quiet compared to similar machines, though it does run frequently during extended use at higher amperages. Some users have reported fan failures after extended use, which is worth monitoring, though my review unit has performed flawlessly through three months of regular use.

The exterior finish resists scratches and weld spatter surprisingly well. Despite living in a busy fabrication shop, my Rebel still looks nearly new. The control panel face is recessed slightly, protecting the display and knobs from accidental damage during transport.

ESAB’s warranty coverage includes their 100-day satisfaction guarantee, which essentially functions as a risk-free trial period. If you’re not satisfied within the first 100 days, ESAB will refund or replace. The standard warranty covers defects for three years, providing reasonable protection for the investment.

Pros and Cons: The Honest Truth

Reasons to Buy the ESAB Rebel EMP 205ic AC/DC

1. True all-process performance: Excellent MIG, Flux-Cored, Stick (including 6010), DC TIG and AC TIG capabilities in one machine
2. sMIG technology: The smart MIG system adapts to your technique, making good welds more consistent and helping beginners learn faster
3. Dual voltage flexibility: Works on standard 120V household outlets or 230V shop power without adapters
4. Intuitive TFT display: The color screen shows all parameters at once with clear navigation and four programmable memories per process
5. Professional TIG features: High frequency start, balance adjustment, frequency control and Pulse DC TIG for serious aluminum work
6. Excellent accessory bundle: Includes MIG gun, stinger, TIG torch, foot pedal and various consumables to get started immediately
7. Portability meets durability: At 49 pounds with a 5-handle roll cage design, it’s built to travel while maintaining stability
8. Runs 6010 on 120V: Rare capability to use 6010 electrodes on household current for pipe and structural work

Reasons to Avoid the ESAB Rebel EMP 205ic AC/DC

1. Premium price point: Costs significantly more than the DC-only version and more than many competitor machines
2. Quality control concerns: Some users report exhaust fan failures and loose pin connections for pedals and guns
3. Medium-grade TIG torch: The included TIG torch works but isn’t professional quality; serious TIG welders will want an upgrade
4. Heavy at 59 pounds shipping weight: While the 49-pound operating weight is reasonable, shipping weight is substantial
5. Thin metal limitations: Some users report challenges on very thin materials below 22 gauge despite the specifications
6. Spool gun sold separately: Aluminum MIG welding requires an additional spool gun purchase, adding to the total cost
7. Learning curve: Despite the friendly display, this is still a complex machine with many adjustable parameters

Value and Verdict: Is the ESAB Rebel 205ic Worth It?

After three months of testing across all welding processes, I can confidently say the ESAB Rebel EMP 205ic AC/DC justifies its premium price for serious welders who need true multi-process capability. This isn’t the right choice for everyone, but for its target audience, it delivers exceptional value.

Who Should Buy the ESAB Rebel 205ic?

• Home fabrication shop owners: One machine that handles MIG for general fabrication, TIG for precision work, and Stick for repair projects eliminates the need for multiple specialized units
• Auto body technicians: Excellent thin metal performance with MIG, plus aluminum capability with AC TIG for repair and modification work
• Maintenance welders: Portability plus 6010 capability makes it ideal for field repair work where you might encounter any welding situation
• DIY enthusiasts ready to level up: The sMIG technology helps develop proper technique while providing room to grow into advanced features
• Small fabrication shops: Professional features in a compact package save space while maintaining capability for diverse work

Who Should Skip the ESAB Rebel 205ic?

• Budget-conscious beginners: Less expensive machines can handle basic MIG and Stick welding if you’re just starting out
• Production environments: The duty cycle isn’t designed for continuous industrial use; dedicated machines would be more appropriate
• Single-process users: If you only MIG weld or only Stick weld, a specialized machine will provide better value
• Occasional users: If you weld once a month for small projects, the advanced features may be overkill

Final Verdict

The ESAB Rebel EMP 205ic AC/DC earns my recommendation as the premier multi-process welder in its class. The sMIG technology represents a genuine advancement in welding equipment, making professional-quality welds more accessible while providing the advanced features experienced welders demand. The intuitive display, dual voltage capability, and true all-process performance create a versatile package that justifies the investment for serious users.

Is it perfect? No. The premium price, occasional quality control issues, and medium-grade included TIG torch are legitimate drawbacks. But for fabricators who need one machine that can handle anything, the Rebel EMP 205ic AC/DC delivers capabilities that previously required multiple specialized units. That versatility, combined with ESAB’s reputation and the 100-day satisfaction guarantee, makes it a worthy investment for the right user.
