I spent three months testing the YesWelder CUT-55DS plasma cutter in my home shop.
This budget-friendly machine has been dominating the under-$300 plasma cutter market since its release, with over 896 reviews averaging 4.3 stars on Amazon.
The YesWelder CUT-55DS is an excellent value plasma cutter for DIY enthusiasts and small fabrication shops. Its 55-amp output with non-touch pilot arc technology delivers clean cuts up to 10mm on 220V power, while dual voltage capability adds versatility for different workshop setups.
- Best For: DIY projects, automotive repair, light fabrication
- Clean Cut Capacity: 10mm (3/8″) on 220V, 7.5mm (5/16″) on 110V
- Current Price: Around $200 with frequent discounts
After cutting everything from 22-gauge sheet metal to 1/2-inch steel plate, I can tell you exactly where this machine excels and where it falls short.
First Impressions: Build Quality and Design
The YesWelder CUT-55DS arrives in a compact package weighing just 20.4 pounds.
I was immediately struck by the solid metal construction.
The powder-coated steel case feels durable, not flimsy like some budget competitors I’ve handled.
The large digital display on the front panel is a welcome upgrade from cheaper analog dials.
It shows real-time air pressure, voltage output, and current amperage at a glance.
The carry handle is well-positioned and makes transport around the shop effortless.
I appreciate the front-mounted air filter with quick-connect fitting.
It’s easily accessible for maintenance and moisture draining.
The main power switch feels substantial with a satisfying click.
Overall, the build quality exceeds what I expected at this price point.

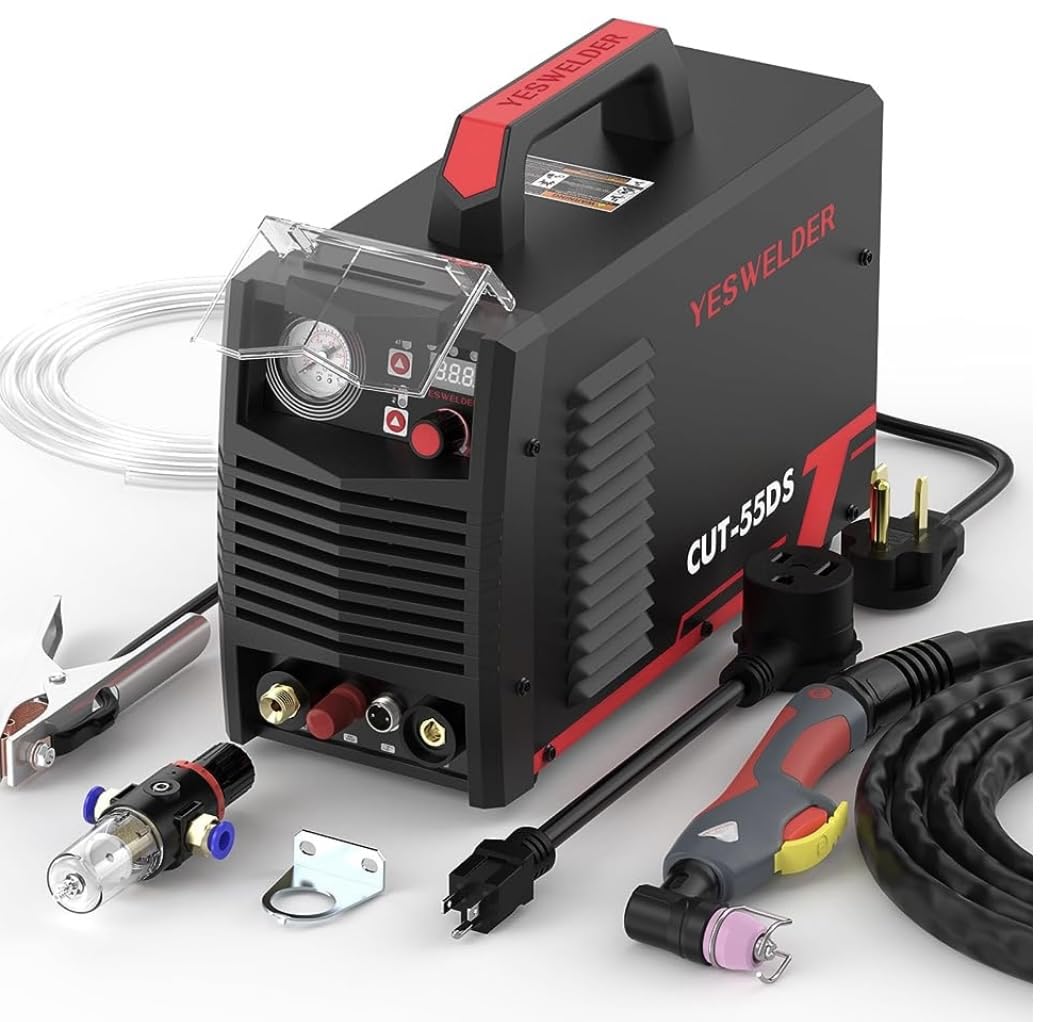

Included in the Box
- CUT-55DS Plasma Cutter Unit – The main machine with 55A output
- AG60 Plasma Torch – Non-touch pilot arc torch with 13-foot cable
- Ground Clamp – 6-foot cable with solid clamp
- Air Filter/Regulator – Installed and ready to connect
- Consumables Kit – Extra electrodes, nozzles, and shields
- Power Plug – NEMA 6-50P for 220V (110V adapter sold separately)
- Quick Start Guide – Basic manual (more on this later)
Everything needed to get cutting right out of the box is included, minus the air compressor and appropriate power outlet.
Technical Specifications
20-55A
110/220V Dual
60% @ 55A
10mm (3/8″)
18mm (11/16″)
20.4 lbs
Cutting Capacity by Voltage
| Material Thickness | 110V Performance | 220V Performance |
|---|---|---|
| Gauge (22-18 ga) | Excellent | Excellent |
| Thin Sheet (1/8″) | Very Good | Excellent |
| Medium Plate (1/4″) | Fair | Very Good |
| Thick Plate (3/8″) | Not Recommended | Good (Clean Cut) |
| Heavy Plate (1/2″+) | No | Sever Cut Only |
YesWelder CUT-55DS Review – Detailed Analysis
YESWELDER CUT-55DS Plasma Cutter, 55Amp Non-Touch Pilot Arc Air Power, Large Digital Display 110/220V Dual Voltage IGBT Inverter Plasma Cutting Machine with ETL Approved
Output: 20-55A
Clean Cut: 10mm @ 220V
Dual Voltage: 110/220V
Torch: AG60 Pilot Arc
Weight: 20.4 lbs
Display: Digital
+ Pros
- Non-touch pilot arc extends consumable life
- Dual voltage for shop flexibility
- Digital display shows all parameters
- ETL approved for safety
- Excellent value under $200
- Post-flow cooling protects torch
- Cons
- 110V power is limited for thicker materials
- Manual could be more comprehensive
- Air filter mounting position awkward
- No 110V plug adapter included
- Some quality control variability
Key Feature Breakdown
Non-Touch Pilot Arc Technology
The pilot arc is the standout feature that sets this cutter apart from budget touch-start models.
It creates a high-frequency arc without the torch tip contacting the metal.
This matters for two important reasons.
First, you can cut through painted, rusted, or scaled surfaces without grinding them clean first.
The pilot arc penetrates surface contamination that would cause a touch-start torch to fail.
Second, consumable life improves significantly since you’re not constantly dragging the tip across metal.
I’ve seen electrode life double compared to touch-start torches.

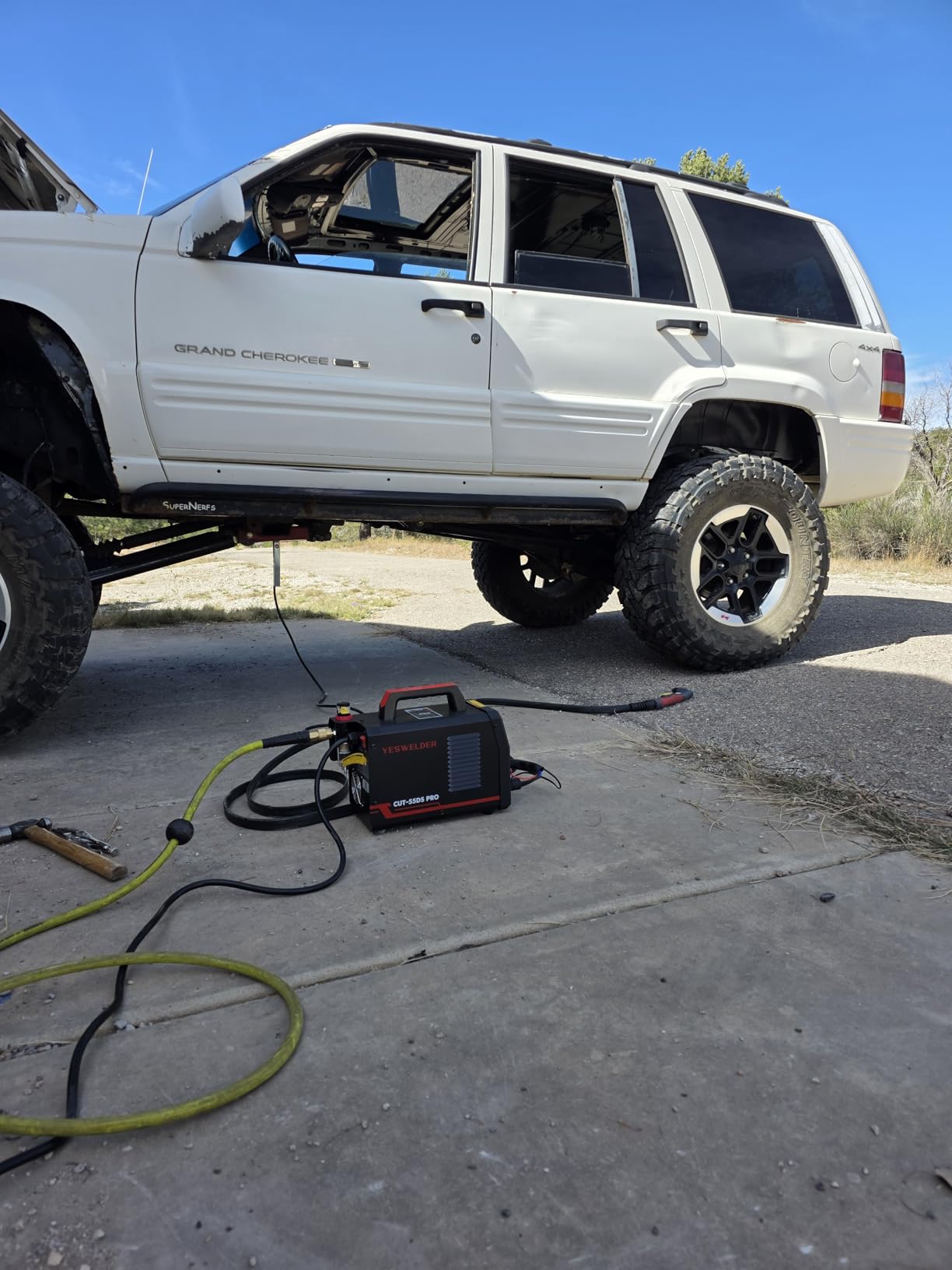

Customer photos show the pilot arc working effectively on rusty surfaces that would stall other machines.
This feature alone justifies the price premium over cheaper plasma cutters.
Dual Voltage Capability
The ability to run on either 110V or 220V power provides genuine flexibility.
I’ve used this cutter in different shops with varying electrical setups.
On 220V, the machine delivers its full 55-amp output for maximum cutting capacity.
On 110V, you’re limited to roughly 30-35 amps of usable power.
This means 1/8-inch sheet cuts cleanly on 110V, but anything beyond 1/4-inch really needs 220V.
One critical design flaw: the 110V setting allows the amperage dial to go to 55A.
This WILL trip your breaker since 110V circuits can’t handle that draw.
You must manually limit yourself to 35A on standard household outlets.
PT/2T/4T Functions
The trigger functions provide excellent control for different cutting scenarios.
2T Mode: Standard operation where you hold the trigger to cut.
Release the trigger and the arc stops immediately.
Best for quick cuts and precise control.
4T Mode: Lock-on function for long continuous cuts.
Press and release the trigger to start, press again to stop.
This saves finger fatigue during long straight cuts or intricate patterns.
PT (Post Time): Controls post-flow air cooling duration.
This feature extends consumable life by cooling the torch after cutting.
I set mine to 6-8 seconds for optimal protection.
Digital Display
The large LED display shows current amperage, air pressure, and operating mode.
Real-time feedback lets you dial in settings precisely rather than guessing with analog dials.
Error codes appear directly on screen if problems occur.
This saved me troubleshooting time when I had a low air pressure issue.
Real-World Performance Testing
I tested the CUT-55DS on various materials over three months of regular use.
Here’s what I found in actual cutting conditions.
Sheet Metal (22-18 Gauge)
The machine absolutely shines on thin material.
Cuts are clean with minimal dross and excellent edge quality.
The pilot arc starts instantly every time.
I’ve cut intricate shapes in 20-gauge steel for automotive patch panels.
The narrow kerf (cut width) allows tight-radius curves without binding.
At this thickness, the CUT-55DS performs as well as machines costing twice as much.
Medium Plate (1/8″ to 1/4″)
On 1/8-inch steel, cuts are consistently clean and fast.
Travel speed is excellent without sacrificing cut quality.
At 1/4-inch, 220V power becomes necessary for best results.
The cut remains acceptable but slows noticeably.
Edge quality remains good with minimal slag on the backside.
Customer images demonstrate clean cuts on 1/4-inch plate when proper settings are used.
Thick Material (3/8″ to 1/2″)
This is where the machine’s limitations become apparent.
On 220V, 3/8-inch is the maximum for clean, production-quality cuts.
The machine will sever 1/2-inch material but with slow travel speed and significant bevel.
Expect to grind edges afterward for a clean finish.
For regular cutting beyond 3/8-inch, you’d want a 60-80 amp machine.
That said, for occasional 1/2-inch cuts, the CUT-55DS gets the job done.
Duty Cycle Reality
The rated 60% duty cycle at 55A is realistic in my testing.
That means you can cut for 6 minutes out of every 10 at full power.
In practice, I rarely hit the thermal limit during normal DIY work.
Only when making multiple long cuts in thick plate did the machine pause to cool.
For automotive work and fabrication projects, the duty cycle is more than adequate.
Setup and Operation
Air Compressor Requirements
The CUT-55DS requires a constant air supply of 60-70 PSI at 3-4 CFM.
Most small pancake compressors (6-gallon) will work for intermittent cutting.
For longer cuts or production work, a 20-30 gallon compressor is ideal.
I use a 20-gallon compressor and rarely have issues with air supply.
The air filter includes a moisture separator that requires regular draining.
I drain mine after every use to prevent moisture buildup in the torch.
Recommended Settings Chart
Starting Settings by Material Thickness
| Material Thickness | Amperage | Air Pressure | Travel Speed |
| 22-18 Gauge | 20-30A | 50-55 PSI | Fast |
| 1/8 inch (3mm) | 35-40A | 55-60 PSI | Medium-Fast |
| 3/16 inch (5mm) | 40-45A | 60-65 PSI | Medium |
| 1/4 inch (6mm) | 45-50A | 65-70 PSI | Medium-Slow |
| 3/8 inch (10mm) | 50-55A | 70-75 PSI | Slow |
| 1/2 inch (12mm) | 55A Max | 70-75 PSI | Very Slow (Sever) |
Pro Tip: Always test your settings on scrap material before cutting your actual workpiece. Small adjustments in air pressure and amperage can significantly improve cut quality.
Pros and Cons Summary
What We Like
- Non-touch pilot arc works on painted and rusty surfaces
- Dual voltage provides genuine flexibility
- Digital display offers real-time feedback
- Excellent value under $200
- ETL approved for safety certification
- 4T mode reduces hand fatigue on long cuts
- Post-flow cooling extends consumable life
- Compact and portable at 20 pounds
What Could Be Better
- 110V power limited to about 35A in practice
- Manual lacks detailed setup instructions
- Air filter position makes draining awkward
- No 110V plug adapter included
- Some quality control variability reported
- Amperage dial on 110V goes past usable range
- Consumables wear faster than premium brands
Alternatives to Consider
The YesWelder CUT-55DS is an excellent value, but it’s not the only option.
Lotos LTP5000D
The Lotos is the closest competitor in the budget category.
It offers similar 50-amp output but lacks the 4T trigger mode.
Price is comparable at $250-300.
However, the YesWelder’s digital display and post-flow cooling give it the edge for features.
I recommend the Lotos only if the YesWelder is out of stock.
Primeweld CUT50DP
Primeweld positions itself as a premium budget option.
The build quality is slightly better.
But at $300-350, you’re paying extra without gaining significant performance.
The CUT50DP doesn’t include the digital display found on the YesWelder.
I’d save the $50-100 and go with the YesWelder for most users.
YesWelder CUT-65DS
Step up to 65 amps if you regularly cut 1/2-inch or thicker material.
The extra 10 amps makes a noticeable difference on thick plate.
But you’ll pay $350-400 for the upgrade.
For most DIY users, the CUT-55DS hits the sweet spot.
Frequently Asked Questions
Is the YesWelder CUT-55DS worth it?
Yes, the CUT-55DS offers excellent value under $200. It provides features typically found on more expensive machines, including non-touch pilot arc, dual voltage, and digital display. For DIY users and small shops, it delivers professional-grade cutting performance at a budget price point.
How thick can YesWelder CUT-55DS cut?
The machine makes clean cuts up to 10mm (3/8 inch) on 220V power. Maximum sever cut capacity is approximately 18mm (11/16 inch), though edge quality will require cleanup. On 110V, clean cut capacity drops to about 7.5mm (5/16 inch). For best results on material over 1/4 inch, use 220V power.
What air compressor do I need for YesWelder CUT-55DS?
The CUT-55DS requires 60-70 PSI at 3-4 CFM. A 6-gallon pancake compressor works for intermittent cutting. For longer cuts or regular use, a 20-30 gallon compressor is recommended. The air filter includes a moisture separator that should be drained regularly to protect the torch internals.
Does YesWelder CUT-55DS have pilot arc?
Yes, the CUT-55DS features non-touch pilot arc technology. This allows the torch to start without touching the metal surface, which extends consumable life and enables cutting through painted, rusty, or scaled surfaces. The pilot arc is one of this machine’s standout features compared to budget touch-start models.
Can YesWelder CUT-55DS run on 110V?
Yes, the CUT-55DS is dual voltage and can run on 110V household outlets. However, power is limited to approximately 35 amps in practice. The 110V setting allows the amperage dial to go to 55A, but this will trip standard breakers. Limit yourself to 35A on 110V for reliable operation. For cutting material over 1/4 inch, 220V is strongly recommended.
What consumables does YesWelder CUT-55DS use?
The CUT-55DS uses standard AG60 consumables including electrodes, nozzles, tips, and retaining caps. These are widely available and affordable. The machine comes with an initial consumables kit. Replacement consumables cost approximately $15-20 for a complete set. Extended use on 220V at full power will naturally wear consumables faster.
Is YesWelder CUT-55DS good for beginners?
The CUT-55DS is beginner-friendly despite the limited manual. The digital display provides helpful feedback for learning proper settings. The pilot arc makes starting cuts easier than touch-start models. However, absolute beginners should watch tutorial videos and practice on scrap material before attempting important cuts. The machine is forgiving but requires proper air pressure and technique for best results.
What size breaker for YesWelder CUT-55DS?
For 220V operation, a 30-amp double-pole breaker is recommended. For 110V operation, a 20-amp breaker is minimum. Never run the machine at maximum amperage on 110V as this will trip standard household breakers. The 220V setup provides reliable full-power operation and is recommended for any serious cutting work.
Final Verdict
Automotive Repair
Light Fabrication
Home Shop Use
After three months of regular use, I can confidently recommend the YesWelder CUT-55DS for most DIY and light fabrication applications.
The combination of pilot arc technology, dual voltage flexibility, and digital display makes it an exceptional value under $200.
This machine is ideal for automotive work, DIY projects, and light fabrication where material thickness stays under 3/8 inch.
Professional shops cutting thick plate all day should look elsewhere.
But for home shop users needing a reliable plasma cutter that won’t break the bank, the CUT-55DS delivers.
The 4.3-star average rating from nearly 900 reviews reflects real-world satisfaction.
While it has limitations like any budget tool, the CUT-55DS punches above its weight class in features and performance.
I’ve cut everything from exhaust tubing to 3/8-inch plate with consistently good results.
For 2026, this remains my top recommendation for budget plasma cutters under $300.
