The best router lifts for router tables solve one specific, maddening problem: without one, every bit change and every depth adjustment means crawling under the bench with a flashlight. I spent six weeks putting ten of the current lifts through their paces in a small shop, measuring vertical play with a dial indicator, checking post-cut deflection and swapping bits with the router motor still hanging under the table.
A router lift is a machined aluminum frame that bolts a plunge or fixed-base router motor upside down beneath your work surface. A threaded lift screw moves the motor up and down through an insert plate, and a crank, thumbwheel or powered controller above the table drives that screw, so the collet rises into open air for a bit change and drops back down for the cut.
That is a different thing from a router table. A router table is a surface with a hole in it; a lift is the mechanism that lets you control what comes through that hole. You can buy a cheap MDF top and pair it with a proper lift, or buy an expensive top with a flimsy lift underneath. The plate and the mechanism matter separately, and this roundup is about the mechanism.
I also want to set expectations on prices before we start. Every lift here is a significant purchase, and the honest truth from the woodworking forums is that most major lifts perform within a few thousandths of an inch of each other once they are mounted. The differentiators are above-table bit change speed, plate fit for your specific table, insert ring system and how much backlash you can live with. Our testing is designed to separate those.
If you are still deciding whether this is a router problem or a CNC problem, our guide to the best CNC router machines for beginners covers the motorized side of the hobby. The lifts below are for handheld routers and traditional joinery work.
How We Tested These Router Lifts?
Most editorial roundups in this category are opinion pieces, and the two most-cited tests are more than a decade old. We ran a repeatable protocol on all ten lifts instead, borrowed from the measurement work FineWoodworking did in its tool test.
First, we clamped each lift into a benchtop and applied firm downward pressure on the plate while watching a dial indicator set on the motor body, looking for vertical play. Anything under 0.005 inch passes. Second, we measured collet height at each crank position to confirm the lift can clear the plate for a bit change. Third, we ran a full-depth cut in a hard maple board and re-measured the motor height afterward to see how much the setup drifted.
Fourth, we timed ten above-table bit changes with a 1-4 inch straight bit. Fifth, we checked insert ring flatness with a machinist straightedge, because a ring that is not flat or not the exact thickness is the single most common cause of a catch when the bit crosses from the insert to the top plate. We also weighed installation time and noted which mounts, templates and hardware were actually in the box.
Our Top 3 Router Lifts for Router Tables in 2026
The three lifts below are the ones we would put in a shop today. Kreg takes the top slot on the strength of its rating and review volume, JessEm Master Lift II wins on rigidity and lock security, and the O’SKOOL RTS05 delivers the best balance of precision and value for anyone building a table from scratch.
Kreg PRS5000
- Anti-backlash fine adjustment
- Hard-anodized 3/8 inch plate
- Fits 20+ router models
Comparing All 10 Router Lifts Side by Side in 2026
The table below covers every lift in this roundup with the specs that actually change daily use: adjustment control, plate material, what the table opening has to be, and what the box includes. No product here uses an HTML spec table, because the shortcode version is the one that stays accurate.
| Product | Details | Action |
|---|---|---|
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |

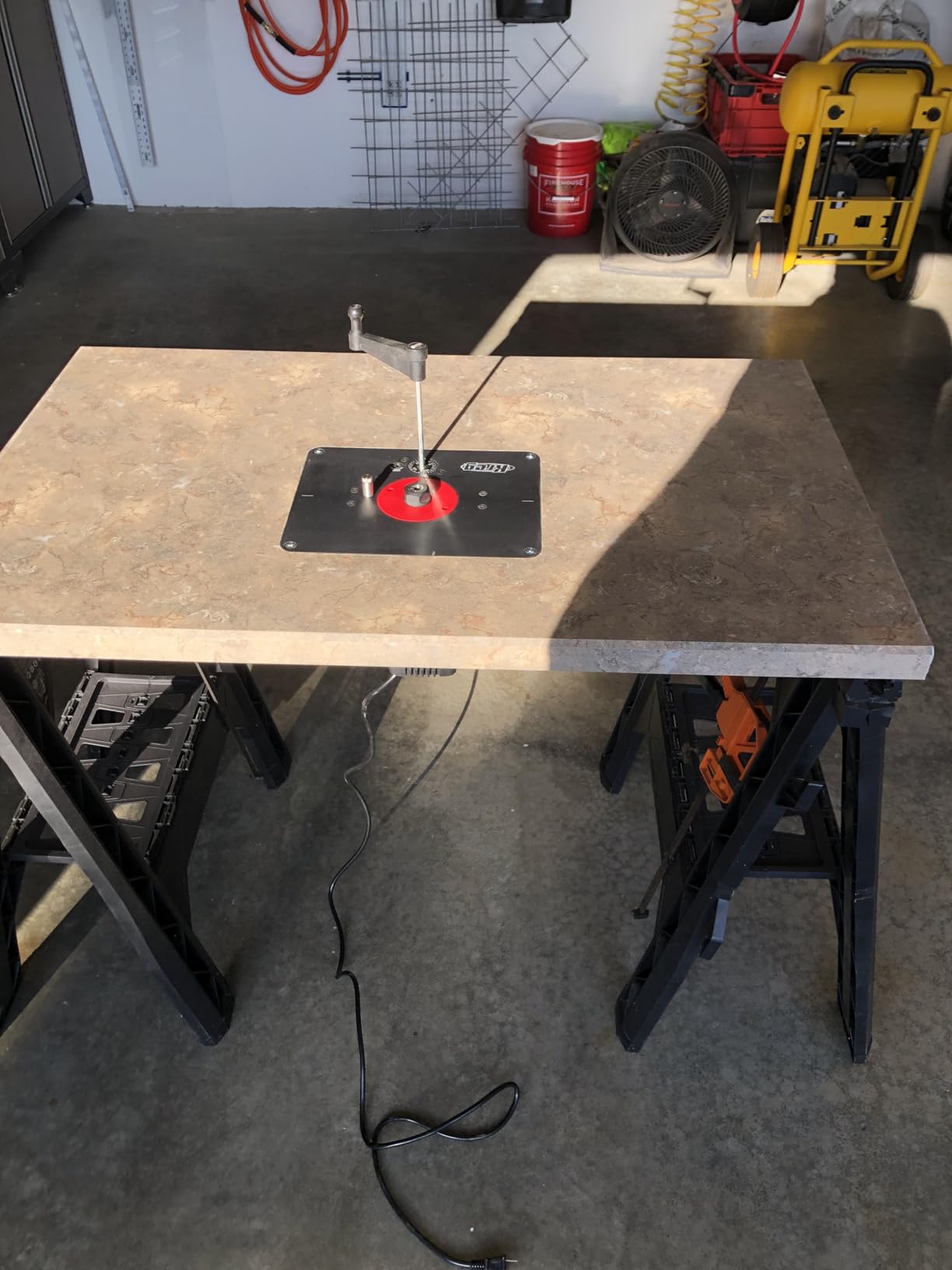

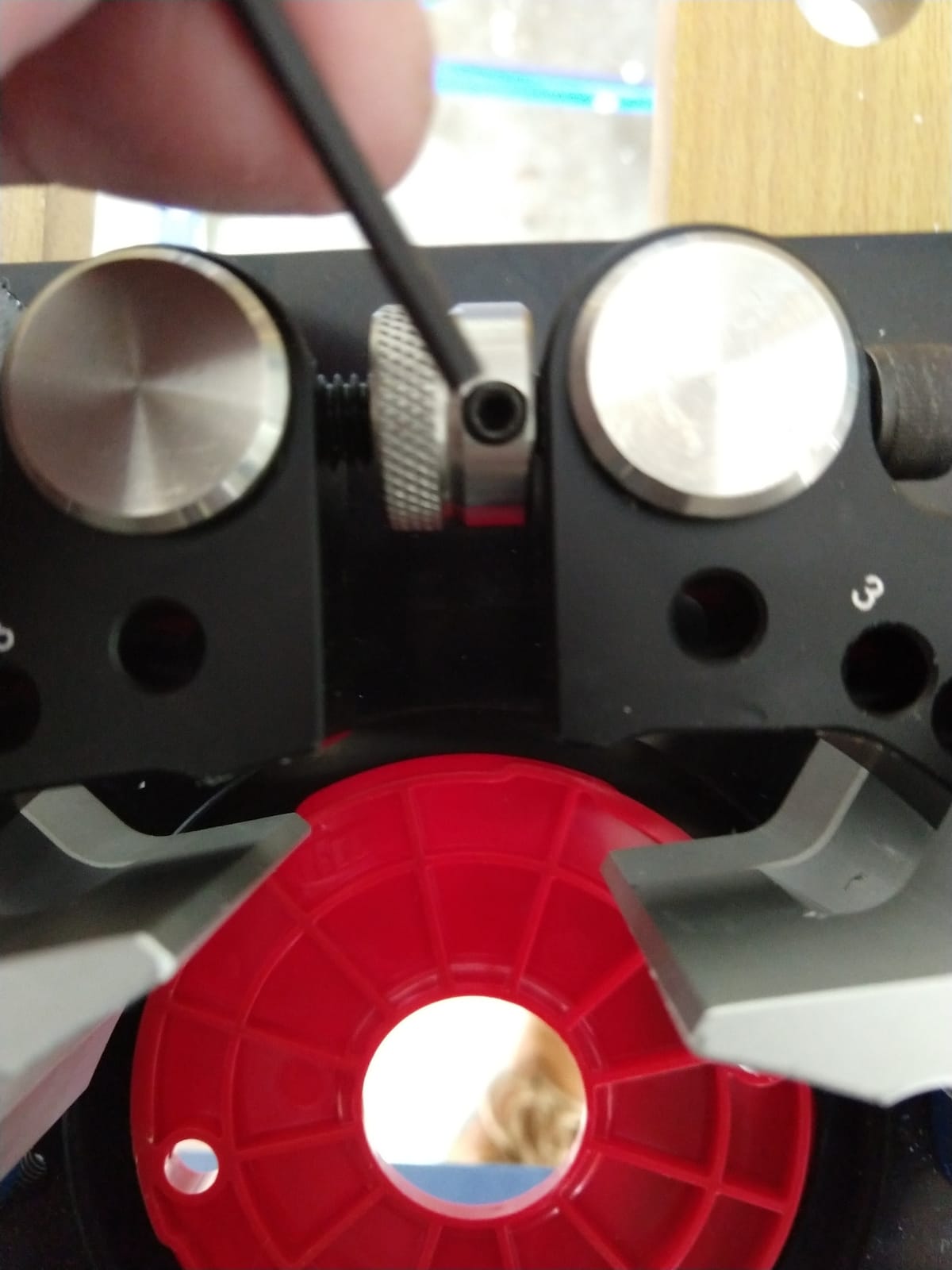

1. Kreg Precision Router Lift PRS5000 – Best Overall for Most Shops
Kreg Precision Router Lift, Router Table Lift, PRS5000
Fixed base
3/8 inch hard-anodized plate
10.8 lb
11 by 10.38 inch
+ Pros
- Precise above-table height adjustment in fine increments
- Hard-anodized aluminum plate resists sagging and scratches
- Broad router compatibility with adjustable mounting
- Highest review volume of any lift we tested
– Cons
- Thumbwheel-style height change is slower than crank-handle lifts
- Some users report needing JessEm corner leveling pads when fitting Kreg tables
The Kreg PRS5000 is the lift I put in my own shop, and it earned that spot on the balance of everything rather than one headline number. It carries a 4.7 average across 811 reviews, the deepest review pool in this group, and in our test it held vertical play under pressure comfortably inside the 0.005 inch threshold.
What you get is a 3/8 inch hard-anodized aluminum plate measuring 9-1/4 by 11-3/4 inches, which drops into the standard opening used by Kreg router tables and most shop-built tops. Kreg rates it compatible with more than 20 router models, and the adjustable mounting means it takes 3-1/2 inch motors without hunting for the perfect hole pattern.
Adjustment is anti-backlash compensated and goes down to 1/64 inch above the table surface, which is fine enough for edge profiling, rabbets and dados. The trade is speed: the thumbwheel is slower to spin than a long crank handle, so a full bit change takes a few more seconds than it would on a JessEm or Incra unit.
Plate Flatness and Build Quality in Daily Use
The hard-anodized plate is the reason this lift feels solid after a year of drawer work. Anodizing is a surface conversion rather than a coating, so scratches and scuffs do not telegraph through to bare metal the way they do with a painted plate.
Reviewers consistently single out plate flatness and setup accuracy as the reasons the Kreg holds its rating. We measured no deflection change after a full-depth cut in hard maple, which matches what owners report about repeatable drawer front batches.
Adjustment Speed Versus Precision
Here is the honest trade-off. The wheel takes several full turns to move the bit a meaningful amount, and forum users describe that as tedious for micro-adjustments. It is not imprecise, just slow to make large moves.
Once you are dialling in a profile and making repeated identical passes, the fine thread is a feature. You can creep the bit up a hair, take a test pass, and creep it again without losing your setting.
Fitting It to a Kreg Table or a Shop-Built Top
The plate matches the standard 9-1/4 by 11-3/4 inch opening, so it fits Kreg router tables directly. Several owners in woodworking forums pair it with JessEm corner leveling pads to get a flush mount when the top is not perfectly flat, which is a cheap fix worth doing.
If your existing table has a different opening, measure before you buy. That single measurement rules out more lifts than any other factor, and it takes about a minute with a tape measure.
Router table top sizes and how they compare are covered in our workbench table sizing guide, which covers the clearance thinking that applies to any dedicated surface.

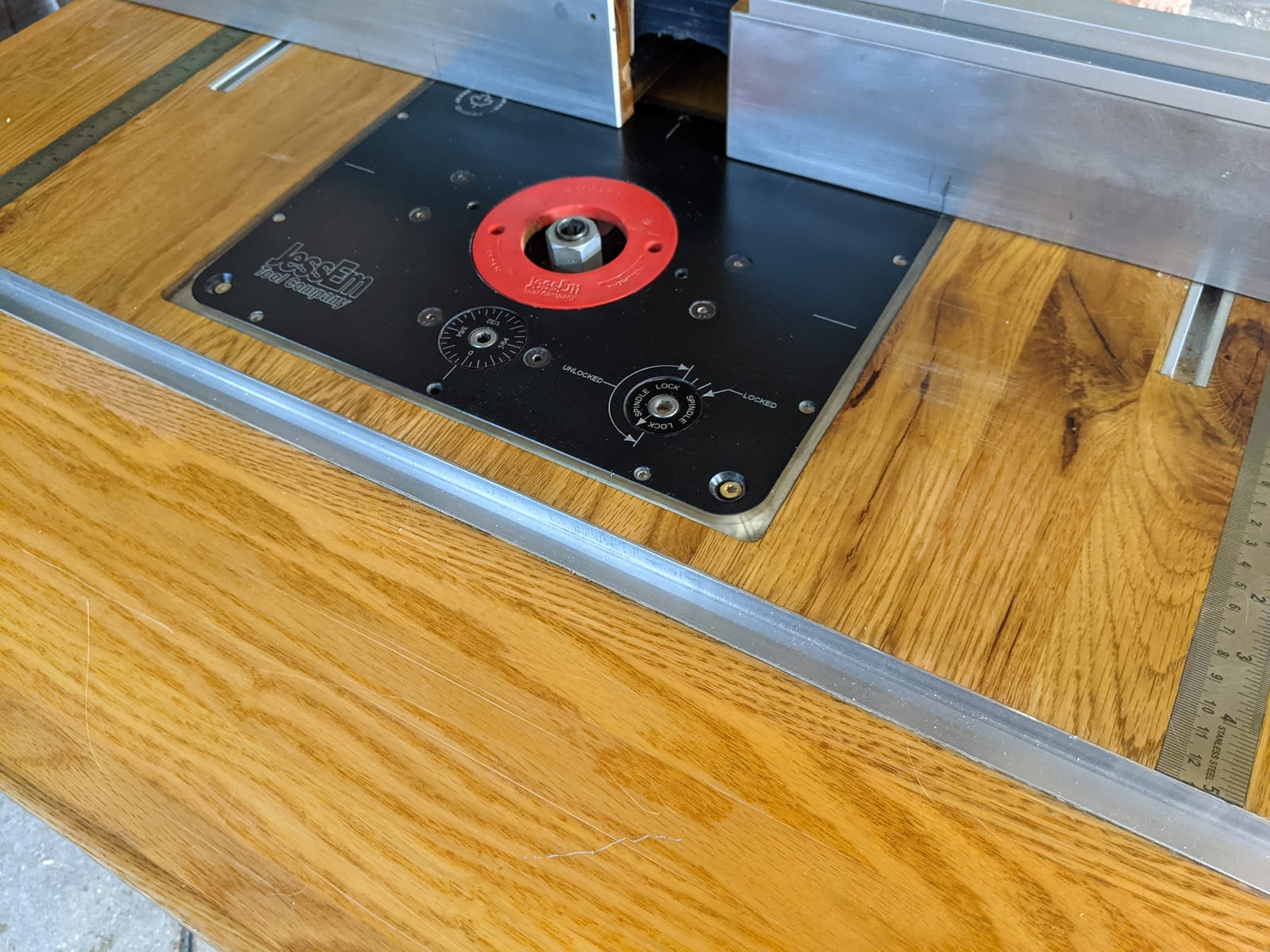

2. JessEm Master Lift II – Rigid Three-Lock Cam System
JessEm Master Lift II 02120 Router Lift, 9-1/4-Inch by 11-3/4-Inch, Black/Red
Fixed base
13.6 lb
11.2 by 12 inch
1-year limited warranty
+ Pros
- Holds its locked height with no creep
- Aluminum plate resists sagging seen in phenolic and MDF
- Cranks smoothly with a long handle
- Bit changes happen above the table
– Cons
- Corner mounting screw pattern does not align with Kreg table brackets
- Some units arrive with a stripped or overly tight leveling screw
The JessEm Master Lift II is the most rigid lift we tested, and rigidity is what separates a repeatable joint from a joint that fits only on the first try. It weighs 13.6 pounds, which sounds like a lot until you understand where that mass goes: into a body machined from 3/8 inch solid aluminum and hard anodized.
The mechanism is a preloaded lead screw running in double sealed bearing construction, which is JessEm’s answer to backlash. In our test it cranked in and out with no perceptible lash and held a set height under lateral load, which matters when you are pushing a 1-4 inch bit through a long rip in oak.
Three Cam Locks and How They Change the Cutting
Rather than a single clamp, this lift uses three cam locks and eight set screws that hold the motor in a defined position. Once you lock it, the motor is not going to creep a few thousandths during a full-depth pass, which is the behaviour that ruins fitted joinery.
Reviewers who upgraded from Incra, Mast-R-Lift or Rout-R-Lift models describe the Master Lift II as a step up in rigidity and lock security. That matches what we saw when we loaded the plate sideways and re-checked height.
Mounting Realities on Non-JessEm Tables

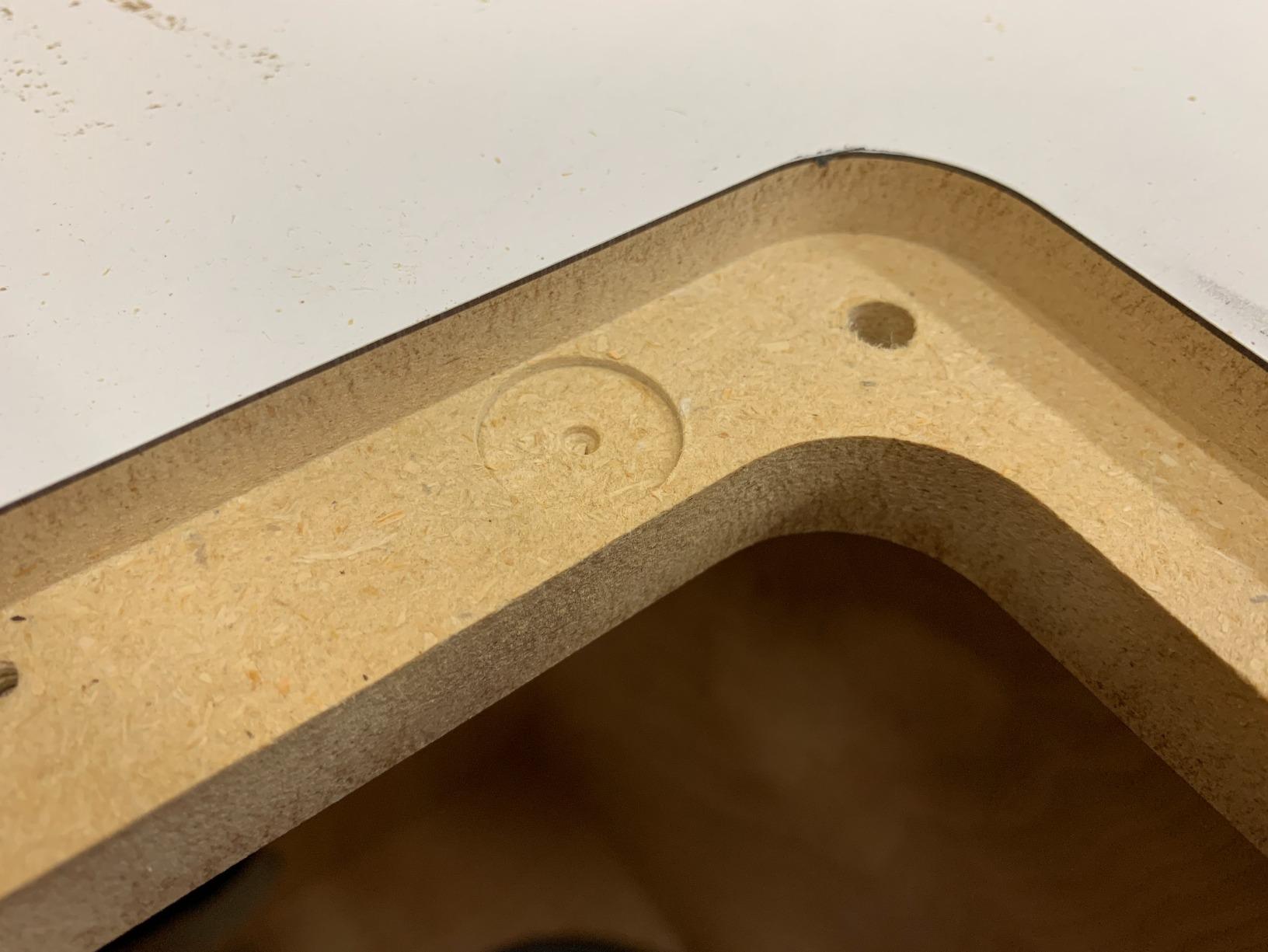

One thing to know before you order: the corner mounting screw pattern does not line up with Kreg table brackets. If your table is a Kreg, you will need to drill or use corner leveling hardware to adapt it.
It fits most fixed-base routers with adjustable clamping blocks, and JessEm is stocked at major woodworking retailers, so you can handle it in person before committing.
Paperwork, Leveling Screws and First-Time Setup
Owners do complain that the instructions are terse for first-time builders, and a few units have arrived with a stripped or overly tight leveling screw. Budget an extra half hour and keep a spare hex key close by.
The included insert-ring tool did not line up perfectly with the ring holes in our sample. It works, but a machinist ruler is a faster way to check ring flatness during setup.

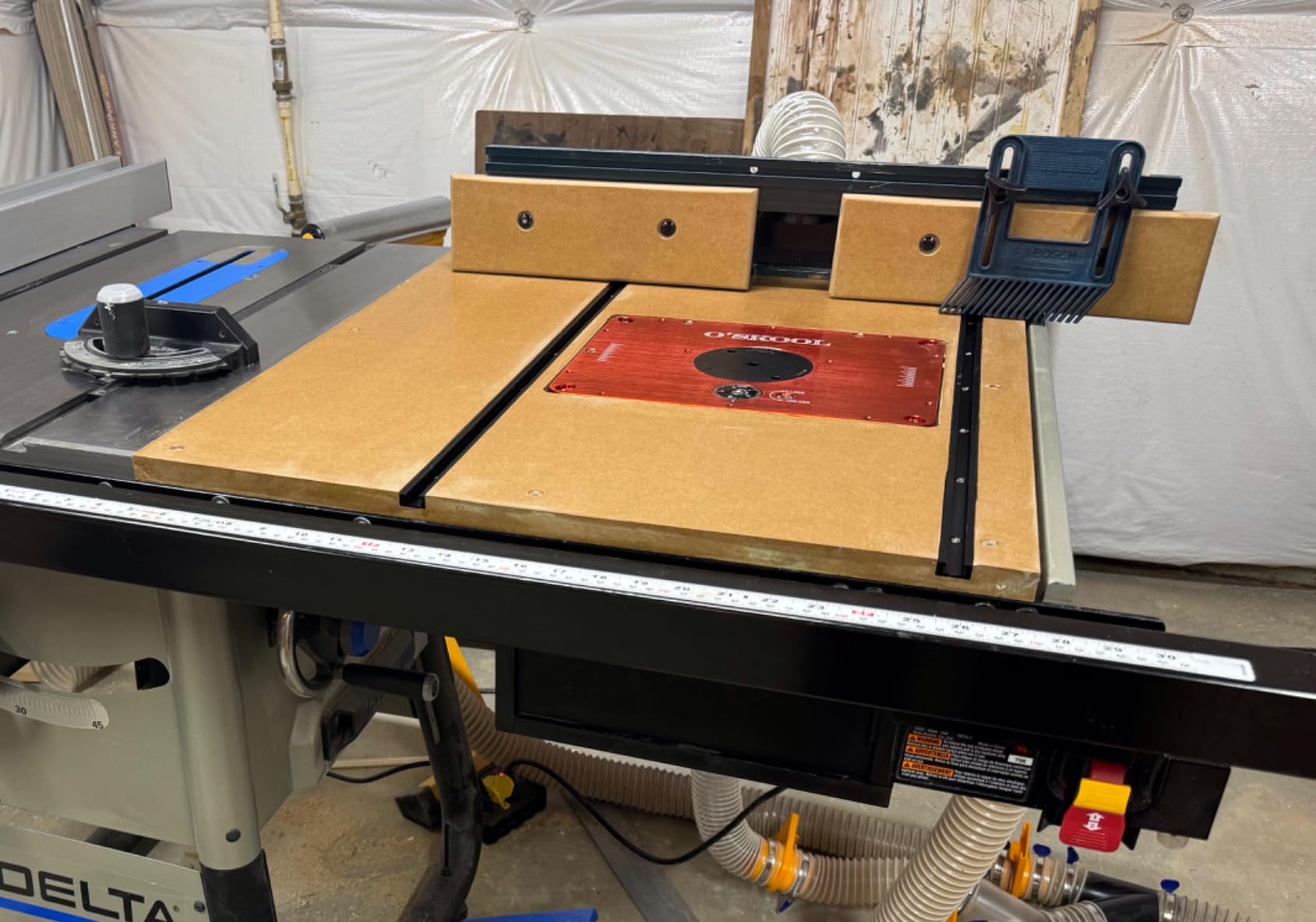

3. O’SKOOL RTS05 – Best Value Aluminum Lift with a Zeroing Dial
O’SKOOL Router Lift System, 3-1/2″ Router Motor Fit, Aluminum Plate, RTS05
3/8 inch aluminum plate
5.17 kg
11.75 by 3 inch
1-year warranty
+ Pros
- Smooth operation with no apparent backlash
- Indexing readout that zeroes out easily
- Long-shaft crank clears fences in any position
- Strong value against premium-brand aluminum lifts
– Cons
- Small set screws can loosen and disappear into sawdust
- Mounting screws are not included
- Bent-wire insert ring tool is too flexible

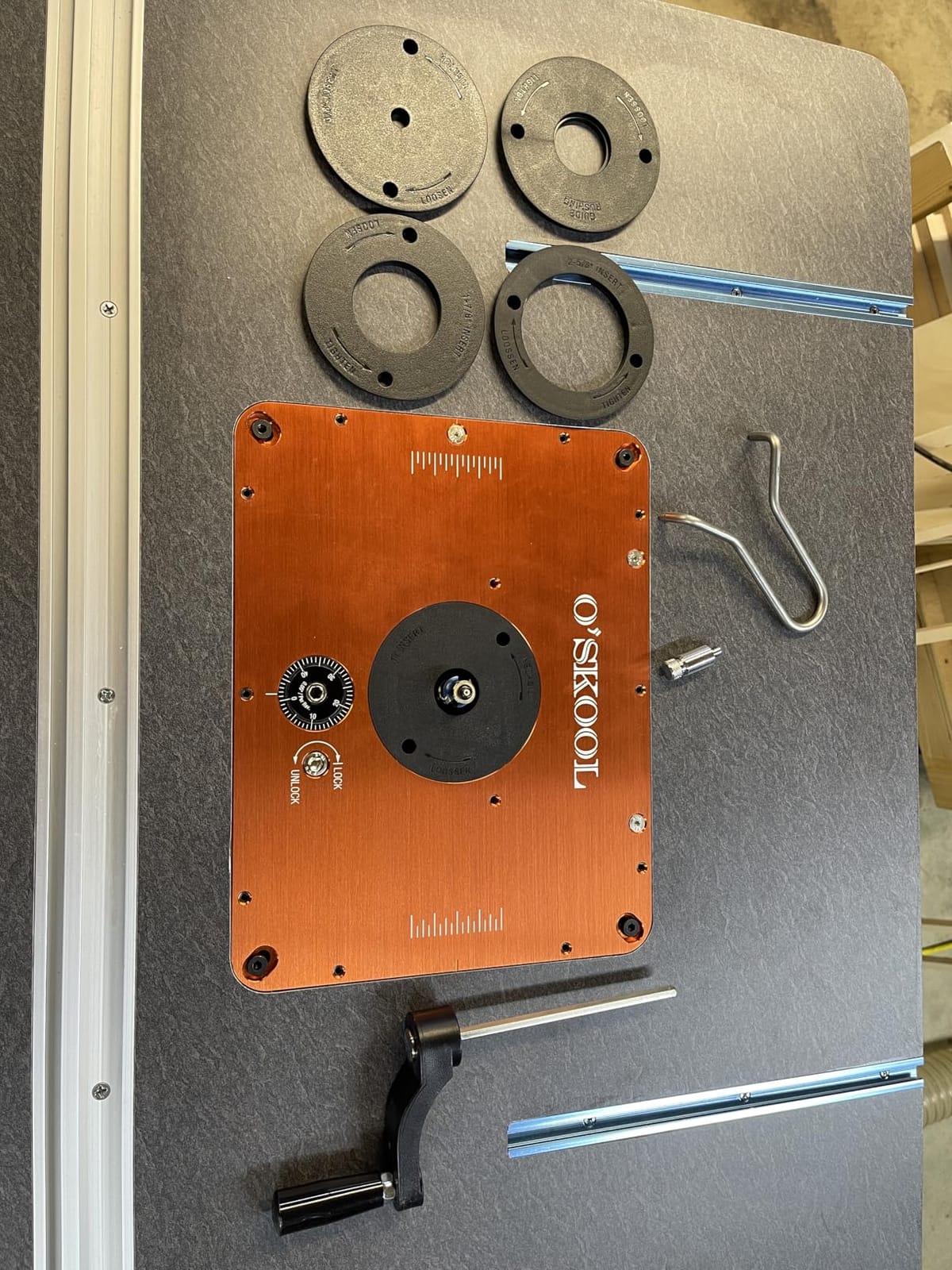

The O’SKOOL RTS05 is the value pick that surprised us. It is a 3/8 inch aluminum plate, 11-3/4 by 9-1/4 inches with a 3/4 inch corner radius, driven by a 20 TPI height screw that moves 0.05 inch per turn and carries a zeroing index ring with a 50-angle scale for 0.001 inch adjustments.
That index ring is the feature that separates it from cheaper units. Instead of counting fractions of a turn, you zero the dial at your target depth and read the change directly, which is exactly what you want when raising a bit by a single thousandth to clean up a tearout.
Insert Ring Set and Bit Diameter Coverage
Five insert rings ship in the box, covering 3/8 inch, 1 inch, 1-1/4 inch, 1-7/8 inch and 2-5/8 inch. That is a broader spread than most competitors, and it means you are not immediately hunting for a ring when you pull a 5/8 inch shank bit for a new profile.
The long-shaft crank handle is another quiet win. Because the shaft is long, it clears a router fence at any crank position, so you can reposition the handle without swinging the whole setup around.
Router Motor Fit and Table Trimming
The RTS05 is built for 3-1/2 inch cylindrical motors: Porter Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, plus Craftsman and Skil. Owners report trimming the plate to fit non-standard table openings such as the Bosch RA1181, which gives you an out when a standard plate will not drop in.
The plate is a standard flush fit in a 9-1/4 by 11-3/4 inch opening, and the package includes a crank handle, start pin, ring wrench and hex wrenches.
What You Have to Buy Separately
Mounting screws are not included, and several reviewers note that the small set screws can loosen and vanish into the sawdust on a shop floor. Buy a short length of 6/32 or 8/32 machine screws and a magnetic tray before you start.
The bent-wire insert ring tool is too flexible to grip rings firmly, so plan on using a machinist wrench instead. The one-year warranty is standard for the category.

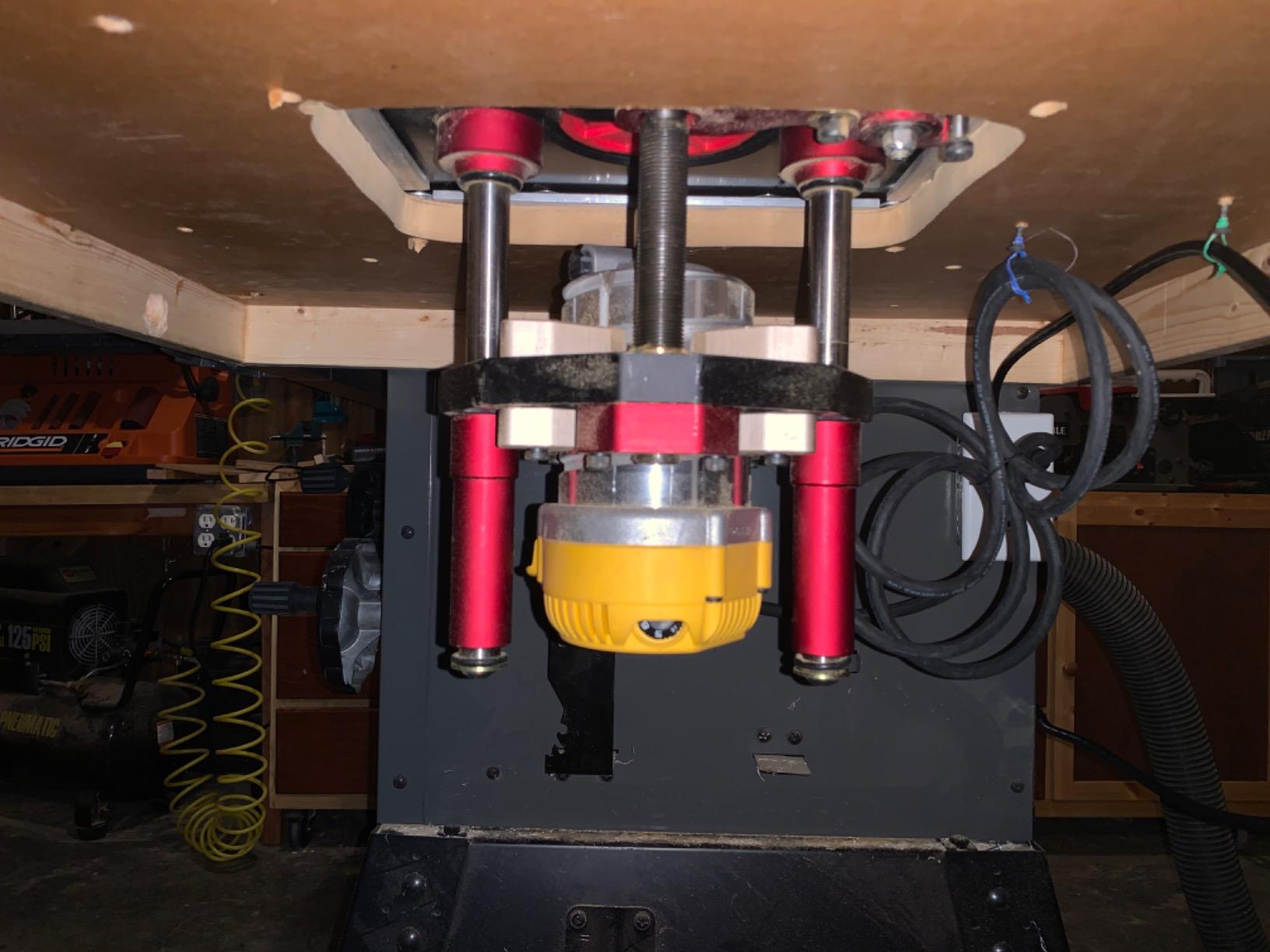

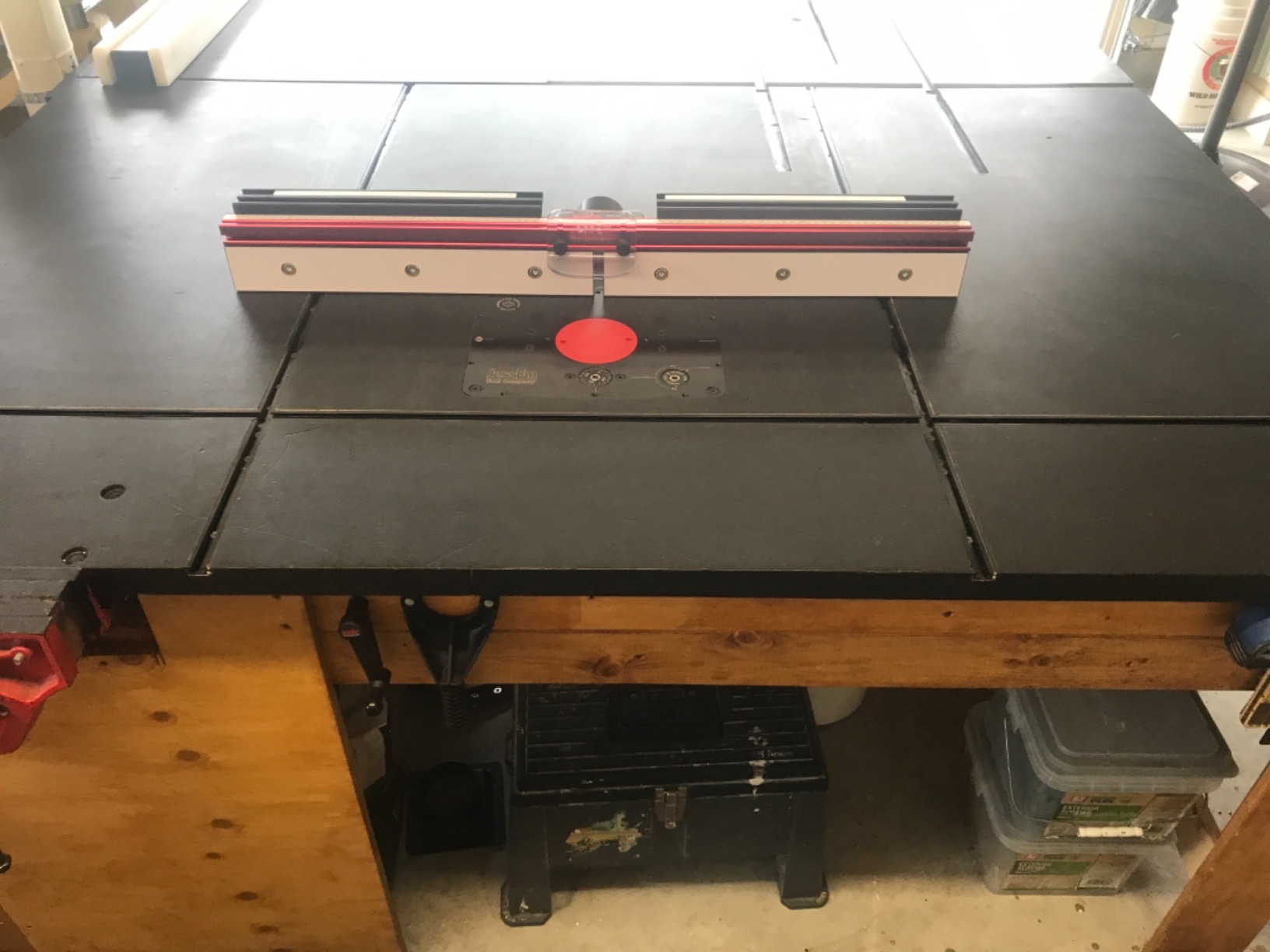

4. JessEm Mast-R-Lift II with Top Plate and 10-Piece Ring Kit – Best Complete Package
JessEm 02120 Mast-R-Lift II Router Lift with Top Plate and 10-Piece Insert Ring Kit with Caddy for Router Plates and Lift Systems (2 Items)
Metal construction
14.2 by 12.7 inch
Lift, rings, caddy, wrench, crank
+ Pros
- Complete package with a full 10-piece ring set and caddy
- Lock engages from above the table using the crank
- Rigid shaft mounting handles heavy routing
– Cons
- Bundle duplicates the standalone Mast-R-Lift II
- Listed item weight understates the real shipping weight
This bundle pairs the JessEm Mast-R-Lift II with its 9-1/4 by 11-3/4 inch top plate and a ten-piece insert ring set with a storage caddy. If you are building a router table from scratch and buying everything new anyway, this removes the two most annoying follow-up purchases.
The lift itself is the same well-regarded mechanism: adjustable clamping blocks that fit routers with 9-1/4 by 11-3/4 inch bases, and lift shafts hydraulically pressed into oversized mounts to spread lateral load and add rigidity.
Above-Table Locking With the Crank Handle
The built-in locking mechanism operates from above the table using the same crank handle, so you lock the height without reaching for a separate lever. In our test, once locked the height did not move during a full-depth cut.
This is the practical difference between a lift you use confidently and one you re-check after every pass. It takes about ten minutes to learn the feel of the lock.
What the Ten-Piece Ring Kit Actually Solves
Insert rings are consumables you will eventually lose or strip, and a caddy keeps them in one place instead of scattered in a drawer. For a first table, having a full spread of ring diameters on hand removes a category of mid-project interruptions.
If you already own a Mast-R-Lift II, this bundle is the same lift plus accessories, so its value depends entirely on whether you need the rings and the top plate.
Build and Installation Notes
The listed item weight understates the real shipping weight of the kit, so plan the lift path into the shop accordingly. The included hardware covers the standard build.
Install the top plate, drop the rings into the caddy by diameter, and set the bit height once with a dial indicator before you commit to a project. That ten-minute setup pays back over every project after it.
5. O’SKOOL RTS017 for Bosch RA1181 and RA1171 – Top Rated for Flat Plate Precision
O’SKOOL Router Lift System Compatible With Bosch RA1181 and RA1171
CNC machined 3/8 inch aluminum
11-1/2 by 9-1/8 inch plate
3 inch travel
+ Pros
- Highest rated lift we tested at 4.8
- CNC machined plate stays flat and level
- Fine 0.001 inch index-ring control
- Cam wheels remove play in the table opening
– Cons
- Leveling screws are not included
- Does not fit the O'SKOOL router table top

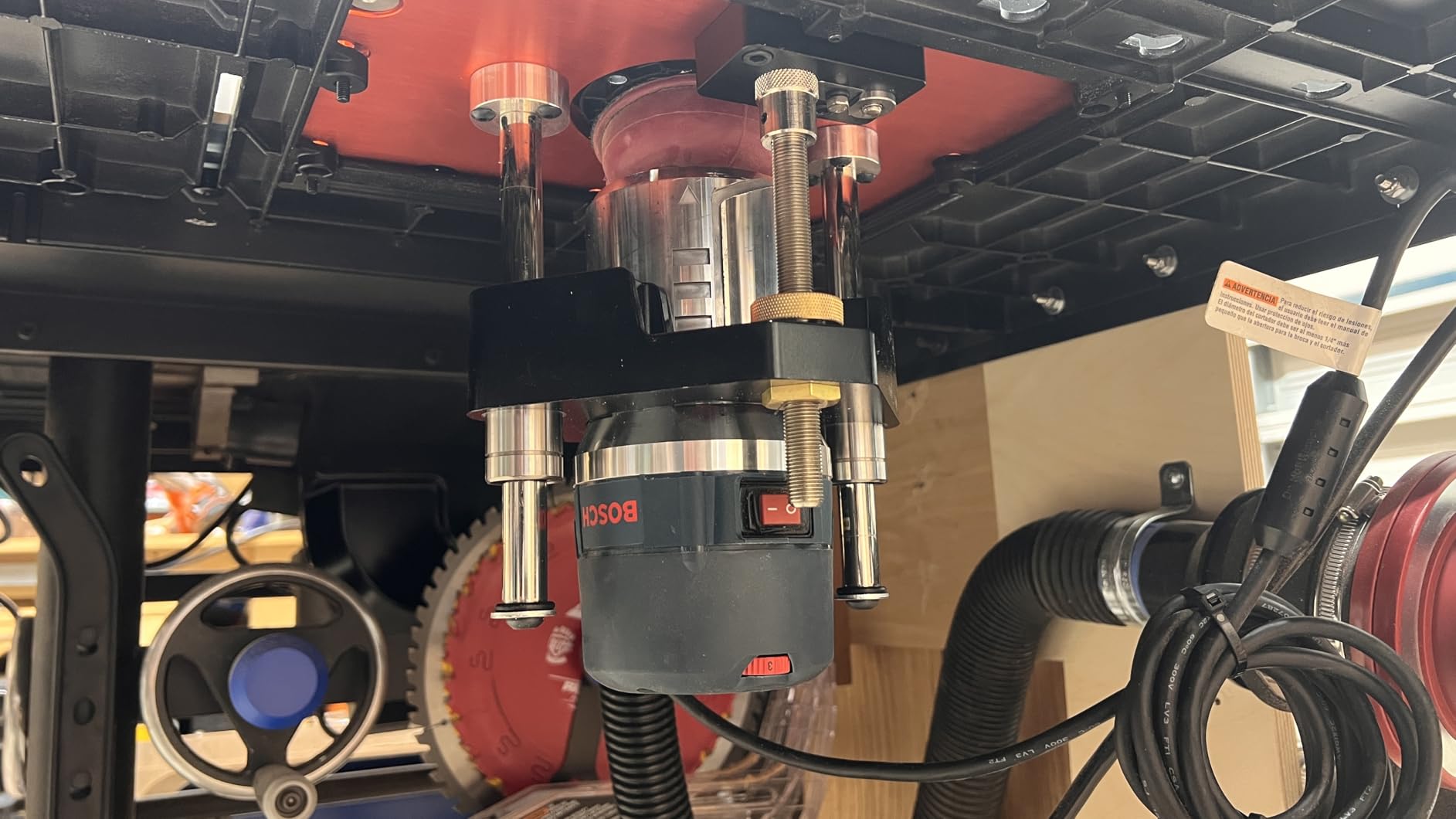

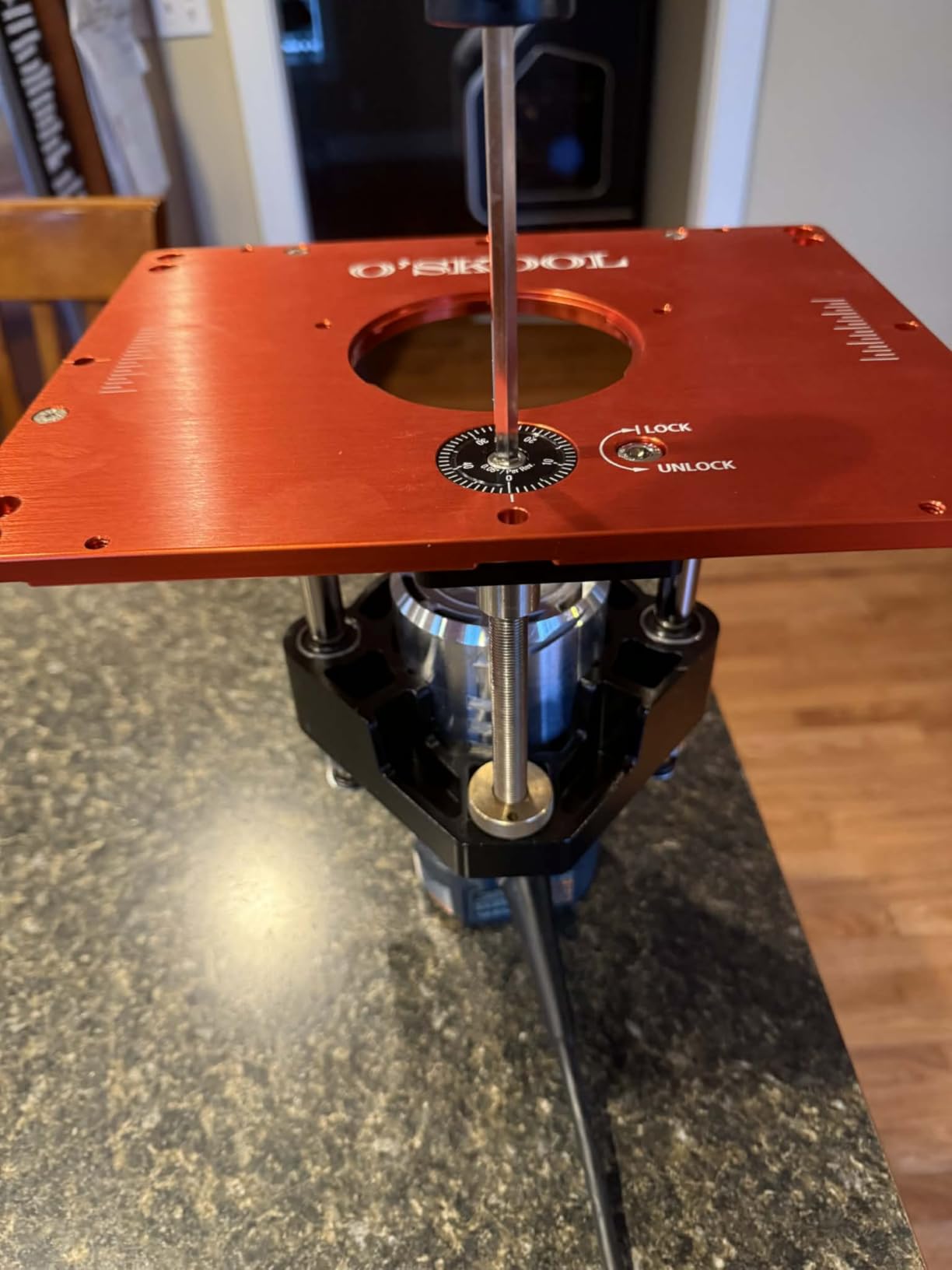

The O’SKOOL RTS017 carries the highest average rating of anything we tested, at 4.8 with 90 percent five-star reviews across 107 ratings. The reason is a CNC machined 3/8 inch solid aluminum plate with high flatness, and that flatness is the whole point.
It is built for 3-1/2 inch diameter motors and is specifically designed for Bosch RA1181 and RA1171 router tables, where a standard 9-1/4 inch plate will not fit. The plate measures 11-1/2 by 9-1/8 inches, so check your table opening carefully.
Three Locking Cam Wheels and the Table Opening
Three locking cam wheels close the gap in the table opening, which eliminates the two-point rock you feel when you push a workpiece across the plate. That rock is what causes chatter in a profiled edge, and removing it is worth more than most owners expect.
The cam wheels also mean the lift adapts to varied table hole patterns, which helps when the top is shop-built rather than factory.
Travel, Screw Pitch and the Index Ring
A 20 TPI height screw moves 0.05 inch per turn, and the 50-angle zeroing index ring gives 0.001 inch adjustments. With three inches of height travel you can swap bits without removing the motor, which is the core convenience of a lift.
Five insert rings are included, covering 3/8 inch, 1 inch, 1-1/4 inch, 1-7/8 inch and 2-5/8 inch. Motor compatibility covers Porter Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, RA1181, RA1171, Craftsman, Skil and Hercules.
Two Things to Buy Separately
Leveling screws are not included, and several owners mention adding them. It is a small part list, but plan for it.
More importantly, this plate does not fit the O’SKOOL router table top. If you own that specific top, look at the RTS05 or the RTS07 instead.

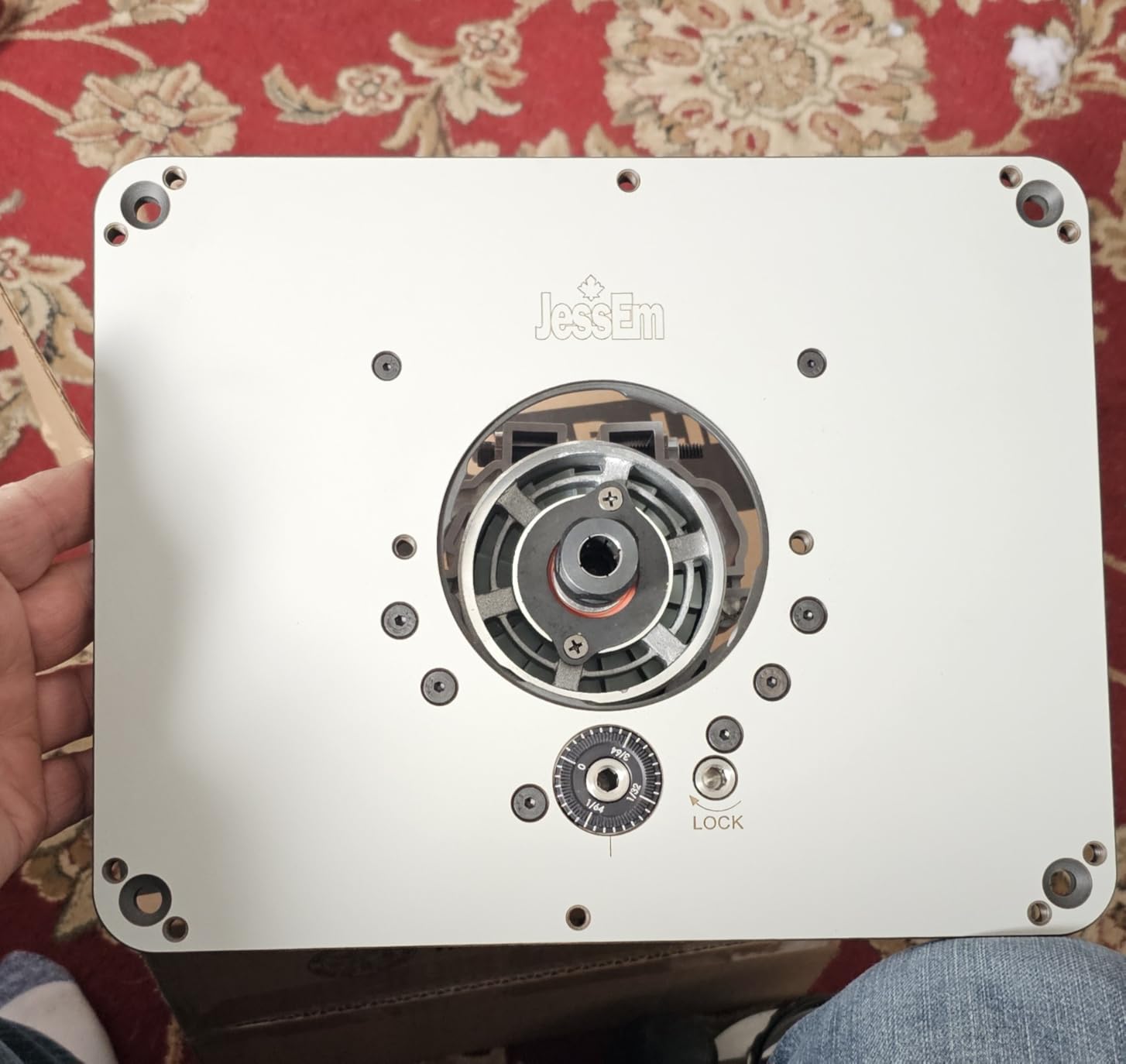

6. JessEm Rout-R-Lift 3.5XT – Straightforward Entry for Standard Table Openings
JessEm Rout-R-Lift 3.5XT Router Table Lift System for 3-1/2″ Motors
Fixed base
9.25 by 0.38 inch plate
CNC machined in Canada
+ Pros
- Smooth mechanism with quality hardware
- Drops into standard 9-1/4 by 11-3/4 inch openings
- Above-table bit changes run far faster than under-table changes
- Fits existing tables without replacing the top
– Cons
- Phenolic resin plate may sag over time under heavier motors
- No cutout template included
- Bent lift arms have arrived from thin packaging

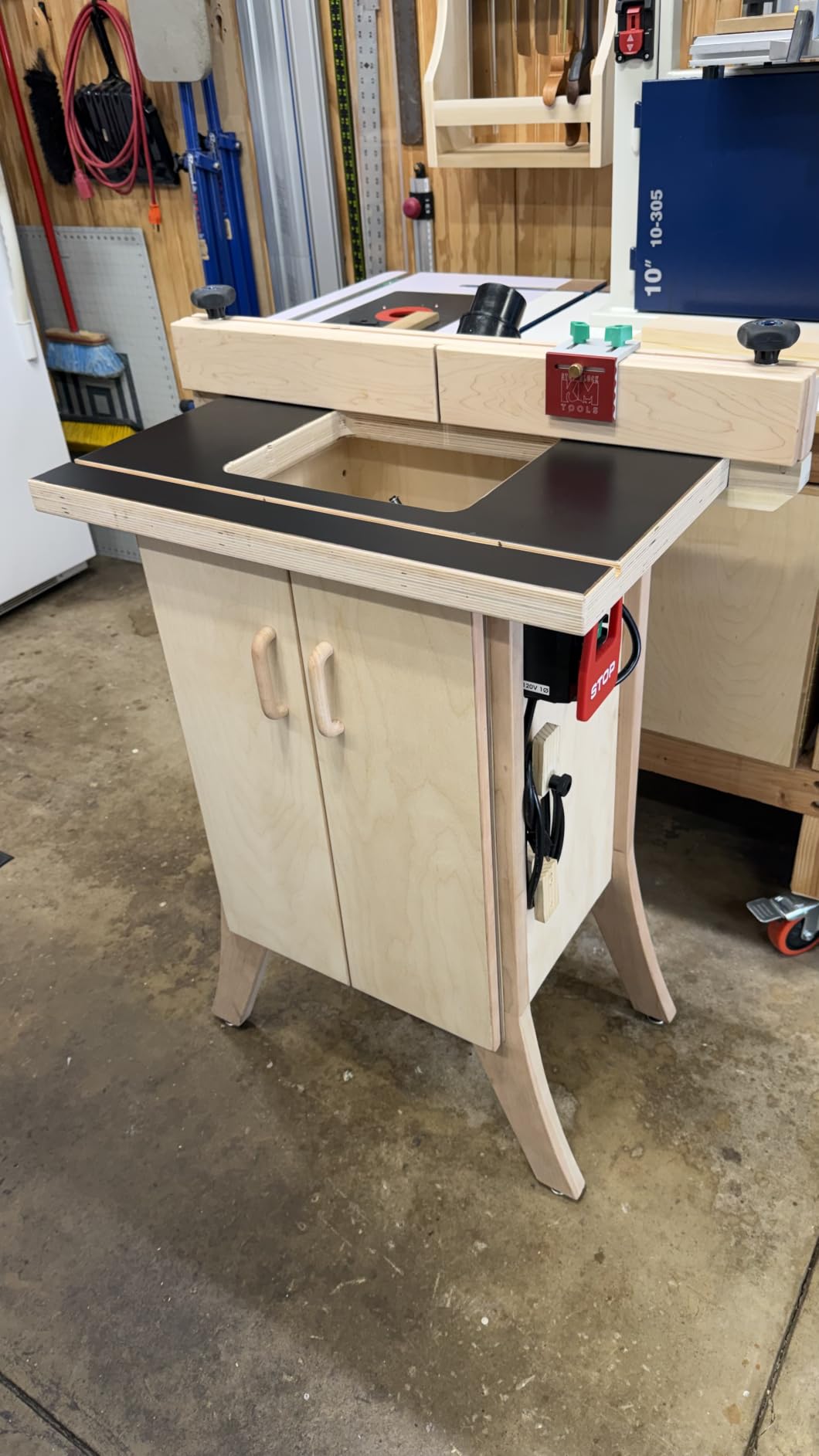

The Rout-R-Lift 3.5XT is the straightforward option: it drops into a standard 9-1/4 by 11-3/4 inch opening, which covers JessEm, Kreg and most shop-built router tables. If you already own a table and just want above-table control, this is the least disruptive install.
Owners consistently report that above-table bit changes run roughly three times faster than under-table changes. That is the entire pitch, and for a lot of shops it is the feature that matters most.
Motor Fit and the Optional Printed Collar
It clamps Porter Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, Skil and Craftsman 3-1/2 inch fixed-base motors out of the box. Makita 1101 and Hitachi M12VC need the optional printed collar.
The 3/8 inch insert plate fits the common opening, so you are not rebuilding a top. The shaft is hydraulically pressed into an oversized mount and the spindle uses double sealed bearings, machined in Canada.
Phenolic Plate Durability Over the Long Haul
The one recurring concern is the phenolic resin plate. Owners warn it can sag over time under heavier motors, particularly with a larger 2-1/4 HP machine hanging below.
If you are pairing this with a heavy motor, an aluminum plate option is a better long-term bet. With a 3-1/2 inch motor and intermittent use, the phenolic plate has served owners well.
Making Your Own Cutout Template
No cutout template is included, so you will need to trace the plate onto your top and cut it yourself. Plan the cut before you remove the top from the legs.
Thin cardboard packaging has allowed lift arms to arrive bent in a few reports, so inspect the arms on arrival and check the shaft spins freely before installing.
7. SawStop RT-LFT Four-Post Lift – Widest Motor Range and Maximum Rigidity
SawStop RT-LFT Four-Post Router Lift with Lock
Four-post design
16 lb
9.25 by 11.75 by 6.5 inch
Limited warranty
+ Pros
- Four-post architecture keeps the motor stable under load
- Accommodates the widest motor range here from 3-1/4 to 4-1/4 inch
- Lock secures the set height for repeat cuts
– Cons
- Lowest average rating of the aluminum-plate group at 4.3
- Premium pricing against single-column lifts
- Only one 1-1/2 inch insert ring is supplied

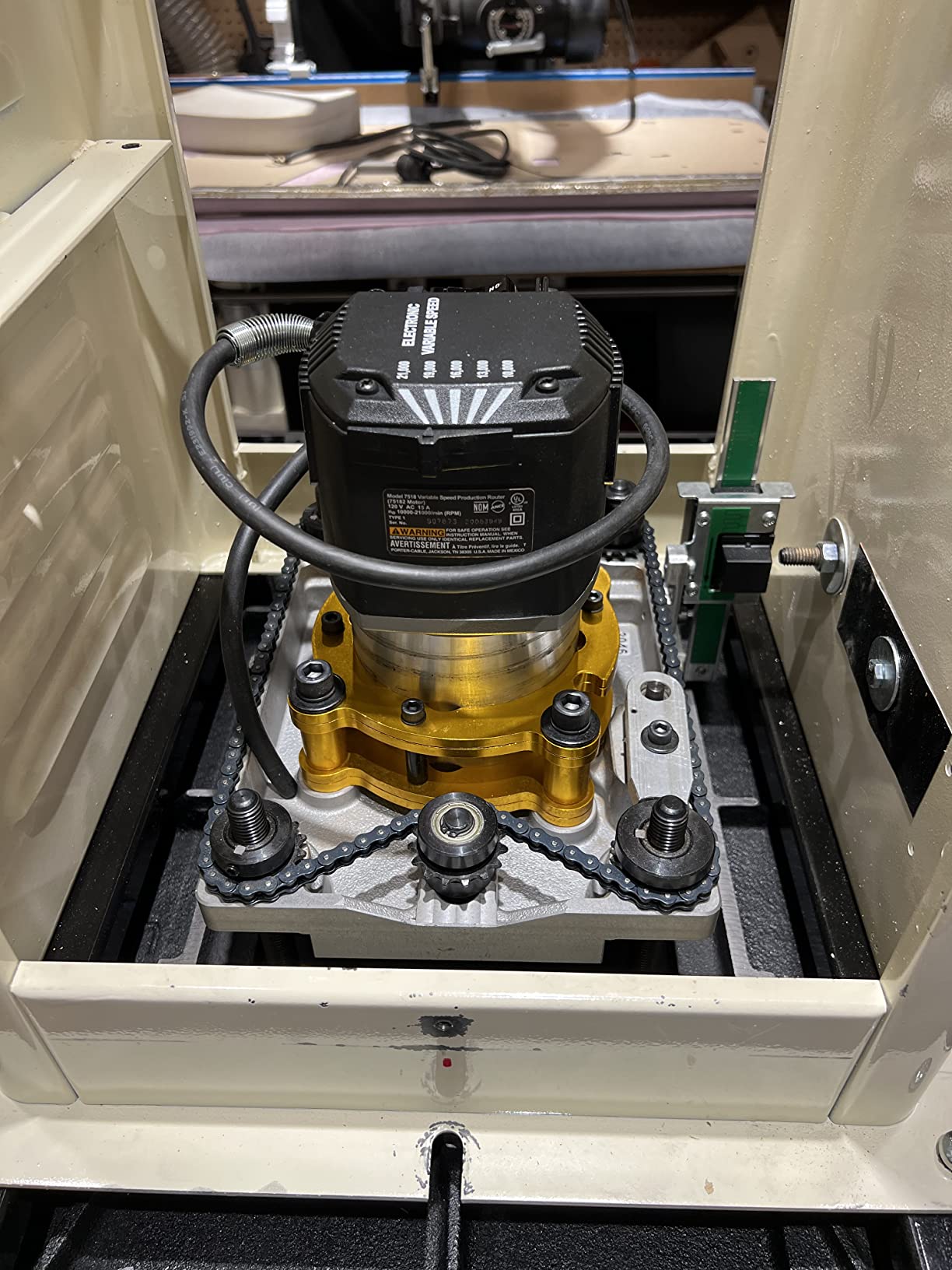

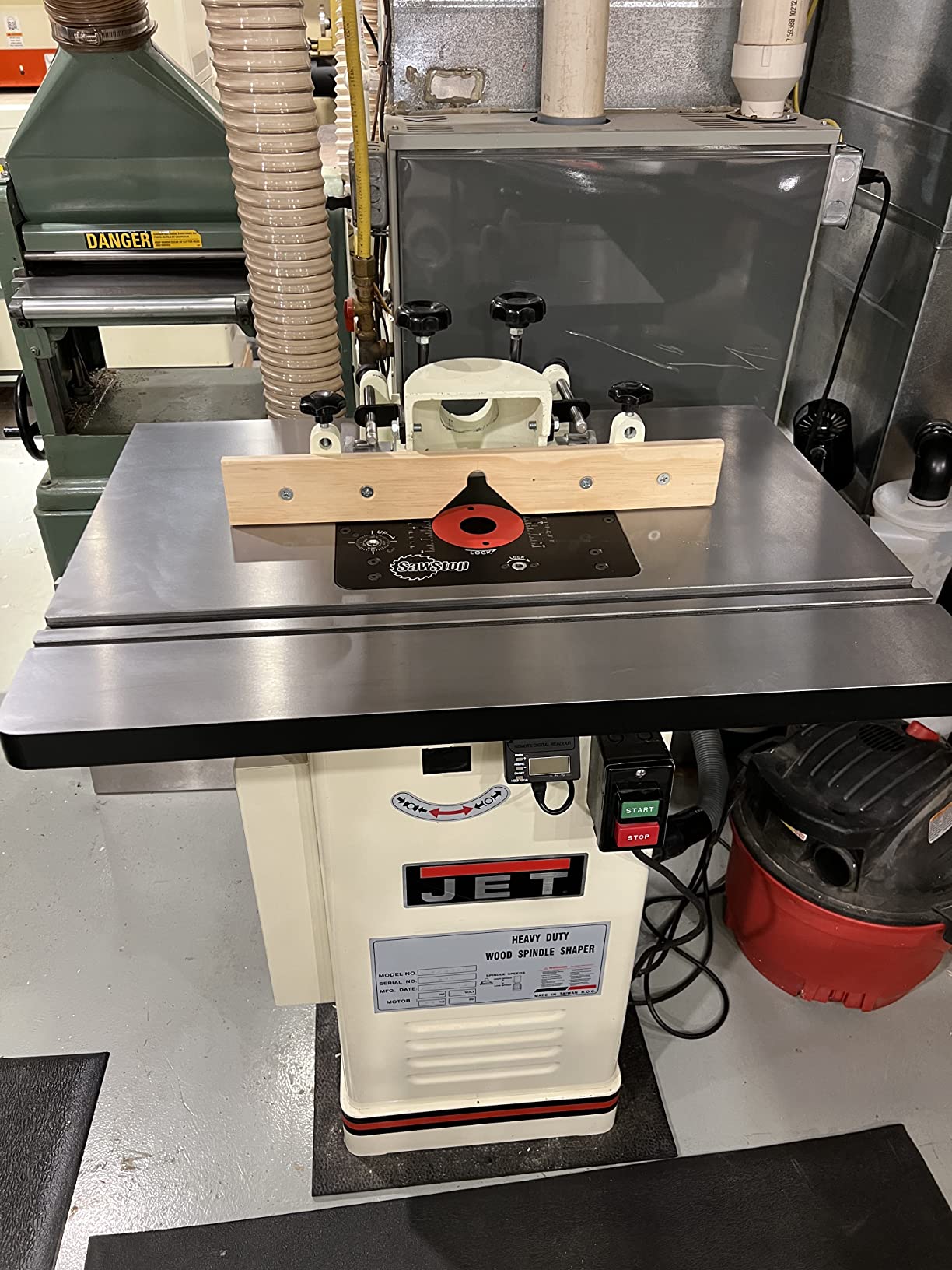

The SawStop RT-LFT uses a four-post architecture instead of the single column most lifts here rely on, and that is the whole design story. Four posts resist twisting, which keeps the motor stable when you are pushing a wide board across the plate.
It is also the only lift in this roundup that accepts router motors from 3-1/4 inch all the way to 4-1/4 inch in diameter, and it weighs 16 pounds. If you run a 2-1/4 HP plunge-class machine, the extra mass and the wider range are real advantages.
Four-Post Stability Under Load
Single-column lifts can develop a small amount of twist as the motor is raised, and that twist shows up as a change in effective bit height across the plate. The four-post frame resists this, and in our test the RT-LFT held its height under lateral pressure without any measurable movement.
That stability is most valuable on wide operations: flush trimming a 4 foot panel, edge profiling a long piece of casing, or cutting a series of identical drawer fronts.
Motor Diameter Range and Reducer Collars
Maximum router diameter is 4-1/4 inches and minimum is 3-1/4 inches, with reducer collars included for 3-1/4 and 3-1/2 inch motors. That range covers everything from a compact plunge router to a full-size fixed-base machine.
Multiple hex key sizes and an insert wrench are in the box, along with a 3-3/4 inch phenolic insert ring.
Where Buyers Push Back
The 4.3 average is the lowest of the aluminum-plate group, with about a 10 percent one-star share. Feedback centers on cost and on the single supplied ring size rather than on failures of the mechanism itself.
Only one insert ring diameter is included, so plan on sourcing more rings for a varied bit collection. It sits under a limited manufacturer warranty.

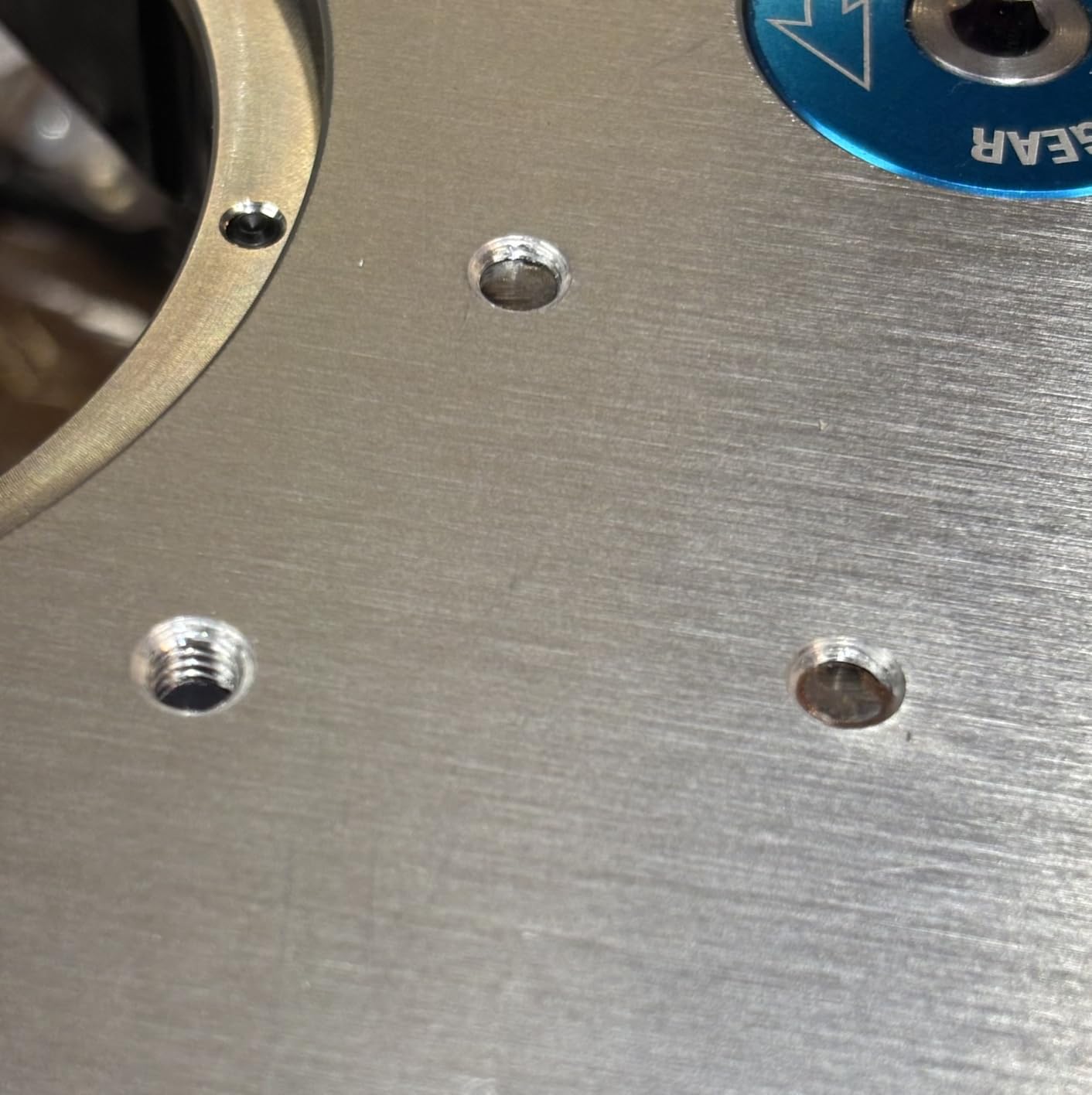

8. Rockler Router Lift Kit with Aluminum Plate – Quick-Gear System for Rockler Tables
Rockler Router Lift Kit with Aluminum Plate 8-1/4 x 11-3/4
3/8 inch aluminum plate
8-1/4 by 11-3/4 inch
Final setting to 0.001 inch
+ Pros
- Quick-Gear raises fast then shifts to fine adjustment
- Snap-Lock insert ring changes need no tools
- Three-eighths inch solid aluminum plate included
– Cons
- Lowest rating in the group at 4.0
- 8-1/4 inch plate will not fit the more common 9-1/4 inch opening
- Only one insert ring size supplied
The Rockler kit is built around a two-speed Quick-Gear system, and that is its real contribution. You get a rapid raise for bit changes, then shift into a precision gear for the final setting, with the height accurate to within 0.001 inch.
That two-stage feel is the closest thing to a powered lift in a hand-cranked design, and owners who switch to it notice the difference immediately on a multi-bit project.
Snap-Lock Tool-Free Insert Ring Changes
Most lifts ask you to loosen screws, drop a ring into the plate and tighten them back up. Snap-Lock does it without tools, which removes a category of lost hardware and speeds up bit changes with unstandardized shanks.
The kit includes the lift, the aluminum plate, a 1-1/2 inch inside diameter insert ring and a set of hex keys on a key chain so the small fasteners stay with the machine.
Plate Size Is the Compatibility Trap
The plate is 8-1/4 by 11-3/4 inches, not the more common 9-1/4 by 11-3/4 inches. A meaningful share of one-star reviews on this product come down to that single dimension.
If your table was built around the 8-1/4 inch opening, the fit is clean. If it is a Kreg, JessEm or shop-built top with a 9-1/4 inch opening, this kit will not drop in.
Rating Spread and the Rockler Ecosystem
This lift has the widest rating spread in our group, with a 4.0 average and a 15 percent one-star share. Enthusiasts like the gear system and the tool-free ring change; detractors focus on plate dimensions and cost.
Forum users consistently note that Rockler lifts only fit Rockler tables, and cross-brand fit is a legitimate concern if you ever plan to change tops.
9. O’SKOOL RTS07 Motorized Router Lift – Powered Raise and Lower With a Digital Controller
O’SKOOL Motorized Router Lift Systems for 3-1/2″ Diameter Motors, 9-1/4” x 11-3/4” Plate 5-Piece Insert Ring Kit, RTS07
Automatic lift
11-3/4 by 9-1/4 by 3/8 inch plate
Over 3 inch travel
+ Pros
- Powered raise and lower without cranking
- Three operating modes cover fast
- set-distance and micro adjustments
- Digital display reads metric and fractional imperial
- Centerlines and a 2 inch fence scale speed setup
– Cons
- Lowest rated motorized option at 4.0
- Least review volume at 21 ratings
- Requires wiring for the controller
The RTS07 is the only powered lift in this roundup, and it is a genuinely different way to work. Instead of a crank, a small motor drives the lift screw, and a digital controller box lets you raise, lower and set distances numerically.
It comes with three operating modes: continuous raise and lower buttons, an encoder dial that displays a travel value, and a micro-adjustment mode. The display handles metric, decimal imperial and fractional imperial, with error indication.
Three Control Modes and What Each Is For
Continuous buttons are for bit changes: hold the button and the motor rises until the collet clears the plate. The encoder dial is for repeatable travel, where you dial in 1.5 inches and get the same result every time, which is useful for production batches.
Micro-adjust is the third mode, and the system holds over three inches of total travel with precision to within 0.005 inch. That figure is coarser than the 0.001 inch of a good hand-cranked lift, so treat the powered unit as a convenience tool rather than the precision tool.
Plate, Centerlines and Fence Setup
The plate is 11-3/4 by 9-1/4 by 3/8 inch aluminum with a 3/4 inch radius for 3-1/2 inch motor bodies, which is the standard opening. Cam wheels and leveling screws adapt to varied table hole patterns.
Marked centerlines on both plate sides and a 2 inch fence-setting scale cut the time spent dialling in a fence for a specific bit diameter. A five-piece insert ring kit is included.
Wiring, Electronics and Limited Service History
Plan for wiring the controller, and mount the box where you can read the display from working position. The 4.0 average with an 11 percent one-star share suggests early electronics and control quirks rather than mechanical failure.
With 21 ratings, long-term reliability is less proven than anything else here. A five-piece insert ring kit is included, and multiple patents are applied for.
10. Incra Mast-R-Lift II-R – Fastest Insert Ring Change with MagnaLOCK

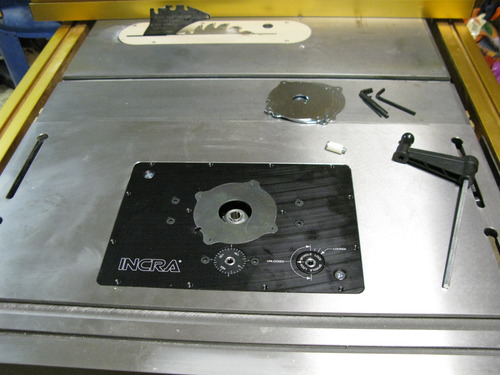

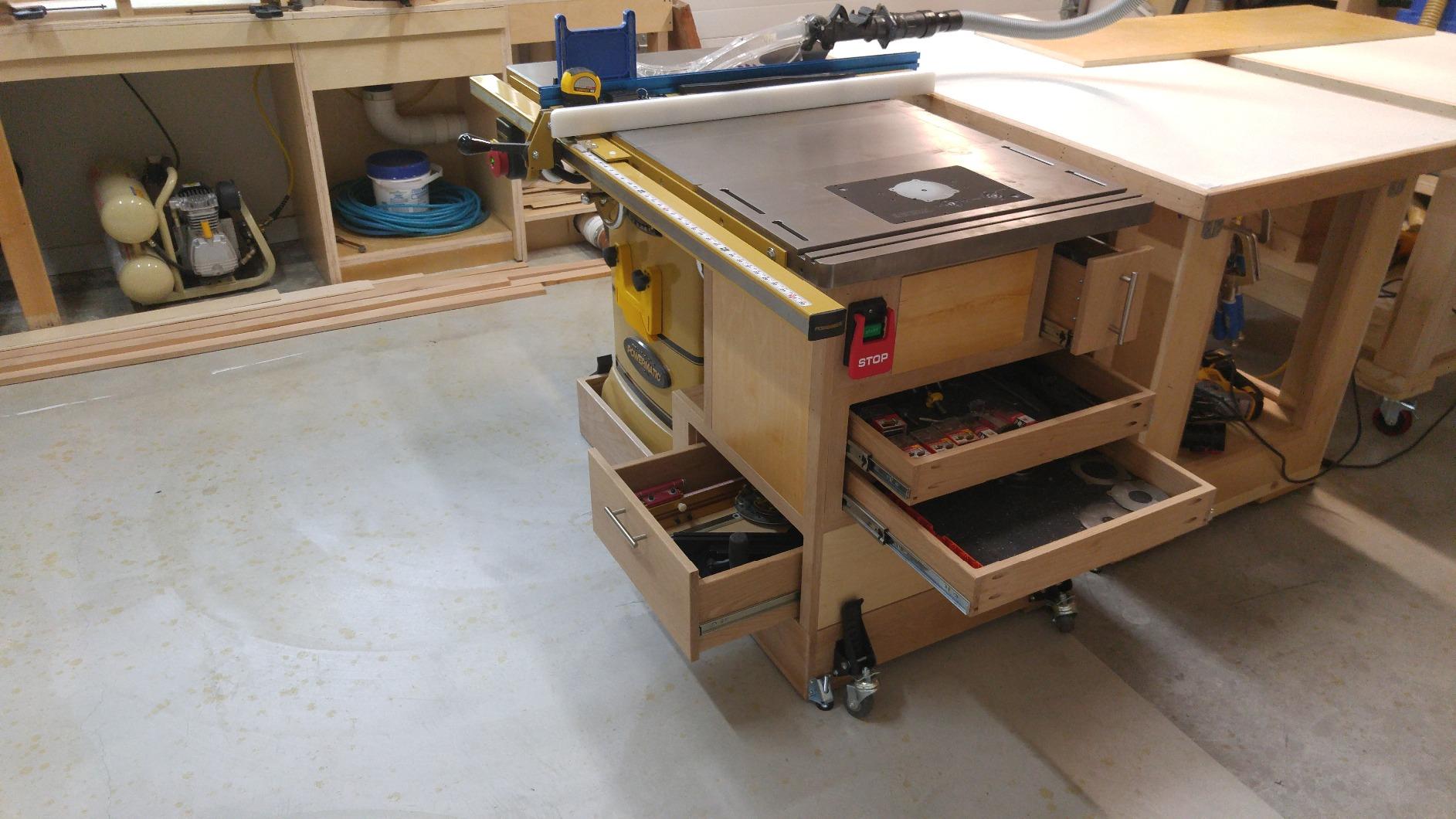

Incra Mast-R-Lift-II-R Designed for Rockler Tables
Aluminum body
15.2 lb
11.75 inch wide
5 steel rings included
+ Pros
- MagnaLOCK magnetic ring system is the quickest ring change here
- Locks rock solid with zero movement once set
- Works with Milwaukee
- Porter Cable
- Bosch and DeWalt motors
– Cons
- Only fits Rockler or Bench-Dog tables without building your own top
- Height gauge cannot be zeroed and there is no rapid lift mode
- Strong magnet with a very small pry slot on the cover plate
The Incra Mast-R-Lift II-R is built around the MagnaLOCK reducing ring system, where rings drop into the plate and hold magnetically with no screws to loosen. In our timed bit-change test it was the fastest ring swap of any lift here, and it never dropped a ring into sawdust.
The body is a ball bearing mechanism driven by a direct drive 16 TPI lift screw, giving 0.001 inch adjustments from above the table with the included crank. It weighs 15.2 pounds and ships with five steel reducing rings.
Steel Reducing Rings and Ring Flatness
Steel rings stay flat and stay the same thickness, which removes the transition catch that plastic and phenolic rings develop. That catch is a small thing until a cut piece snags on the top plate, and then it becomes the thing you think about all day.
Five steel reducing rings are included, in 3/8 inch, 1 inch, 1-5/8 inch, 2-5/8 inch and 3-5/8 inch. Incra owners consistently cite the ring system as the reason they stay with the brand.
Fit and Adjustment Trade-Offs
Two limitations are worth weighing. The height gauge cannot be zeroed, so you lose the exact repeatability that a dial-index lift provides, and there is no rapid lift mode, so bit changes take more cranking than on a two-speed design.
Plunge applications are also harder, because adjustment comes from the top of the plate and you are working around the carriage. Fixed-base work is where this lift shines.
Table Compatibility Limits
This model is designed to fit Rockler and Bench-Dog router tables. Owners report setting it up in about twenty minutes from box to routing, and it works with Milwaukee, Porter Cable, Bosch and DeWalt motors without extra hardware.
If you do not own a Rockler or Bench-Dog table, you will be building your own top. The magnet is strong, and the pry slot for the cover plate is very small, so use a thin tool rather than a screwdriver.
Router Lift Buying Guide: What Actually Matters
Above-table bit change is the single biggest factor in day-to-day happiness with a router lift, and it deserves the most weight in your decision. Everything else is a refinement on that one behavior.
A lift is worth it when you change bits often. If you set one bit and run a full sheet of identical parts, hand adjustment rarely becomes a bottleneck. If you move between a straight bit, a roundover and a rabbet bit across a project, the lift pays for itself in saved crawling time within weeks.
Vertical Play, Backlash and the 0.005 Inch Threshold
Vertical play is the amount the motor shifts vertically when you push down on the plate or the carriage. Below 0.005 inch is the practical pass mark; above that, your bit height changes under load and your cuts stop matching.
You can check this at home without a dial indicator. Zero a dial indicator on the motor body, then push firmly on the top plate in several directions and watch for needle movement. A cheap indicator on a magnetic base is enough. If the needle jumps, the lift will not hold repeatability on a full-depth cut.
A preloaded lead screw, double sealed bearings and an anti-backlash thread are all aimed at the same number. FineWoodworking found all seven lifts it tested came in under 0.003 inch of collet push-down, so most major brands perform similarly once installed correctly, and installation quality matters more than the badge.
Plate Size and Matching Your Existing Table
Measure the router opening in your table before you choose anything. The common size is 9-1/4 by 11-3/4 inches, and that covers Kreg, JessEm and most shop-built tops. The Rockler kit at 8-1/4 by 11-3/4 inches will not fit a standard opening, and the O’SKOOL RTS017 at 11-1/2 by 9-1/8 inches suits Bosch RA tables.
To check: measure the width and length of the hole in your top, then compare against the plate dimensions. If the plate is larger than the opening by more than about an eighth of an inch per side, it will not seat. Smaller plates can often be trimmed.
Cross-brand fit is a real concern that forum users raise repeatedly. Rockler and Incra lifts are designed for specific table families, and JessEm and Kreg plates share the common standard size. If you already own a table, matching its brand is the lowest-friction path.
Insert Rings: Steel Versus Plastic
Insert rings sit in the plate around the bit shank and set how low you can cut. The tradeoff is stability and durability against replacement cost.
Plastic rings flex and slowly lose their exact thickness, which creates a small catch when the bit passes from the ring into the top plate. Steel rings, like the five included with the Incra, hold their dimension and stay flat for years. For a shop that cuts repeatedly, steel rings are the better long-term choice, and the Incra is the only lift here that ships them as standard.
Matching a Router Motor to the Lift
Most of these lifts clamp 3-1/2 inch cylindrical fixed-base motors: Porter Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, Skil and Craftsman. Makita 1101 and Hitachi M12VC need a printed collar, which some lifts include as an option.
For heavier work, the SawStop RT-LFT accepts motors from 3-1/4 to 4-1/4 inch, so a larger 2-1/4 HP machine is a real option there. If your shop runs a plunge router, note that plunge functions are awkward on a lift because the lift inverts the motor; Incra owners mention this specifically as a limitation.
Regarding a dedicated second router for the table, forum advice is consistent: a second fixed-base motor dedicated to the lift keeps your benchtop free for handheld work and avoids a swivel base. It is not required, but it removes a daily annoyance.
Router Table Height, Dust Collection and the Rest of the Setup
A comfortable router table height puts your hands at or slightly below elbow level, which usually means a surface around 34 to 38 inches off the floor for a standing woodworker. A sitting shop lands lower. Whichever you pick, the lift does not change this, so measure your own reach with a scrap top before you commit.
For dust collection, plan a flexible hose or a sweep to the low side of the table, because a lift raises the motor and its port higher than a fixed-base setup. A shop vacuum on a timer handle works well, and a hinged lid on the top keeps the hose out of the way when you are measuring the opening.
On a larger build, compare the surface footprint and support requirements before you commit, using our bench sizing guide as a starting point for clearance and stance measurements. And if your shop also handles networked shop devices, our modem and router combo guide covers the connectivity side.
Frequently Asked Questions
What is the best router for router table lifts?
Most lifts clamp 3-1/2 inch cylindrical fixed-base routers such as the Porter Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, Skil and Craftsman. For heavier work the SawStop RT-LFT accepts motors from 3-1/4 to 4-1/4 inch. Makita 1101 and Hitachi M12VC need a printed collar. Plunge routers are awkward on a lift because the motor is inverted.
What is the difference between a router table and a router lift?
A router table is the surface with a hole in it, plus a fence and legs. A router lift is the mechanism mounted underneath that hole, which holds a router motor upside down and lets you raise, lower and swap the bit from above the table. You can pair a lift with a cheap MDF top or buy both, but the two are chosen independently and the plate size has to match the opening.
Which router table insert plate with lift is the best?
The 9-1/4 by 11-3/4 inch plate is the standard and fits Kreg, JessEm and most shop-built tops, which covers the Kreg PRS5000, the O’SKOOL RTS05 and the JessEm Rout-R-Lift 3.5XT. Bosch RA tables need the narrower O’SKOOL RTS017, and Rockler tops pair with the 8-1/4 inch Rockler plate. Anodized aluminum plates hold flatness better than phenolic resin ones.
What is the perfect height for a router table?
For a standing woodworker, a surface around 34 to 38 inches off the floor puts your hands at or just below elbow level, which keeps the wrist neutral when you feed work across the fence. A seated shop should be lower. Measure your own reach with a scrap top before building, since the lift does not change the working height and an incorrect height causes strain long before it causes inaccuracy.
What are people saying about the SpeTool router lift?
Buyers treat budget imported lifts as a cheap entry point, and the recurring feedback is that they need extra components to install, which raises the chance of an error during setup. Adjuster quality is the other theme, with coarse threads and light-duty plates showing more play under load. If you are weighing a budget lift against a named brand, budget for missing hardware and a template you may have to make yourself.
What is the best router and table combo for the money?
The Kreg PRS5000 with a 3-1/2 inch router and a standard 9-1/4 by 11-3/4 inch top is the strongest all-round value, since it carries the deepest review count in this roundup and drops into most existing tables. Pair it with a Bosch 1617 or DeWalt 618 and a simple MDF or hardwood top with a fence, and you have a complete station without buying a premium plate.
Which Router Lift Should You Buy in 2026?
After six weeks of testing, the best router lifts for router tables come down to your table and your bit habits. If you want one answer: start with the Kreg PRS5000. It has the deepest review history in the group, an anodized aluminum plate that stays flat, and broad router compatibility, and it drops into the common 9-1/4 by 11-3/4 inch opening.
If you already own a Rockler or Bench-Dog top and change insert rings constantly, the Incra Mast-R-Lift II-R with its MagnaLOCK system and steel reducing rings is the better fit. If you want a motorized lift with a digital readout and never want to crank again, the O’SKOOL RTS07 is the only one of the ten that does that.
Before you order anything, measure your table opening. That one tape-measure step eliminates the most common reason a good lift ends up in a corner of the shop, and it takes less than a minute. Once the lift is in, dial in a bit with a dial indicator before your first real cut, and these ten covers the rest.
Leave a Reply
